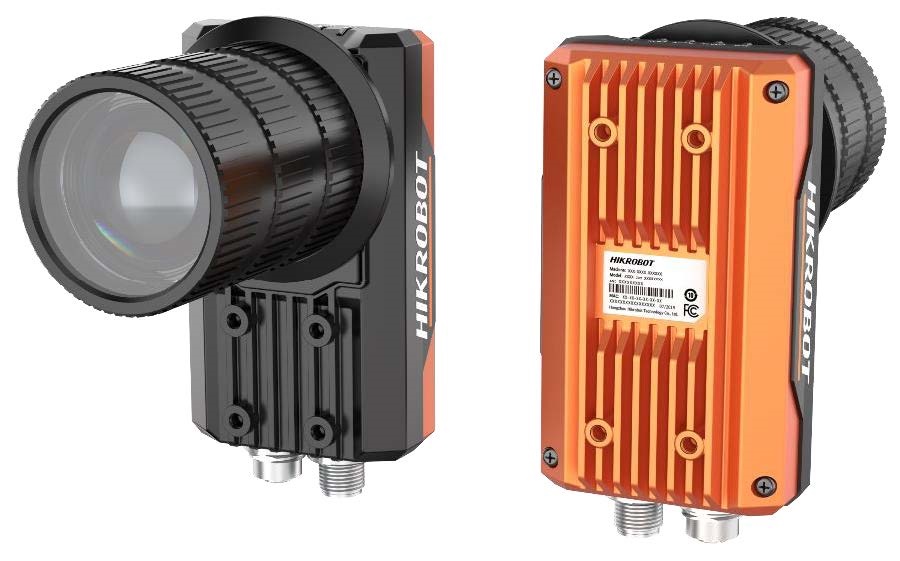

MV-SC7200PM-00C-NNN, 20 MP, Smart Camera
MV-SC7200PM-00C-NNN smart camera is developed based on high performance embedded platform. It adds vision algorithms like character recognition, object recognition, object sorting, etc. after integrating general vision algorithms.
Manufacturer : HIKROBOT
Key Features
- Built-in deep learning algorithms to achieve character and object recognition, object sorting, etc.
- Integrates general vision algorithms to achieve location, measurement, recognition, etc.
- Supports mechanical autofocus function to achieve fast debugging and configuration.
- Big memory and storage support image savings in loop with high performance.
- Adopts multiple I/O interfaces for controlling.
- Supports multiple communication protocols.
- Supports indicators displaying device status.
Specifications
| Resolution | 20 MP |
| Existence Tools | Pattern Existence Spot Existence Edge Existence Circle Existence Line Existence |
| Counting Tools | Pattern Count Spot Count Edge Count |
| Measurement Tools | Brightness Analysis Contrast Measurement Greyscale Size Diameter Measurement Width Measurement Line Angle Line to Line Angle Point to Line Edge Width Measurement |
| Recognition Tools | OCR Code Recognition DL Object Detection DL Classification |
| Mono/Color | Mono |
| Communication | Ethernet/IP Profinet Modbus FTP TCP Client/Server UDP Server RS-232 |
| Robot Location | Match Location Match Calibration |
| Logic Tool | IF Module Condition Judge Logic Judge Combination Judge Calculator String Comparison |
| Memory | 8 GB |
| Storage | 32 GB |
| Power Supply | 24 VDC |
Downloads
| MV-SC7200PM-00C-NNN | Datasheet |
| SC7000 Series Supporting Light Board | Datasheet |
| MV-SC7200PM-00C-NNN stp drawing | Drawings |
