HIKROBOT Smart Code Readers

MV-ID6200EM-00C-NNG, 20 MP Industrial

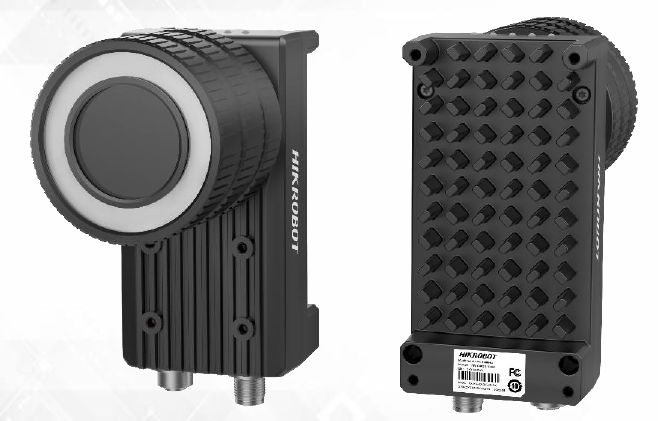

Built-in deep learning algorithm to read codes with good robustness.
Adopts CMOS sensor to provide high-quality images with horizontal resolution of 5K and bottom horizontal FOV covering 1-meter conveyor line.
Supports rapid recognition of multiple code within large FOV.
Supports networking of multiple devices.
Flexible installation and convenient debugging.

Resolution	20 MP
Power Supply	12 VDC, 24 VDC
Max Reading Speed	30 codes/sec
Data Interface	Gigabit Ethernet
Communication	FTP, Serial, SmartSDK, TCP Client/Server, UDP
1-Dimensional Code	Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, UPCE

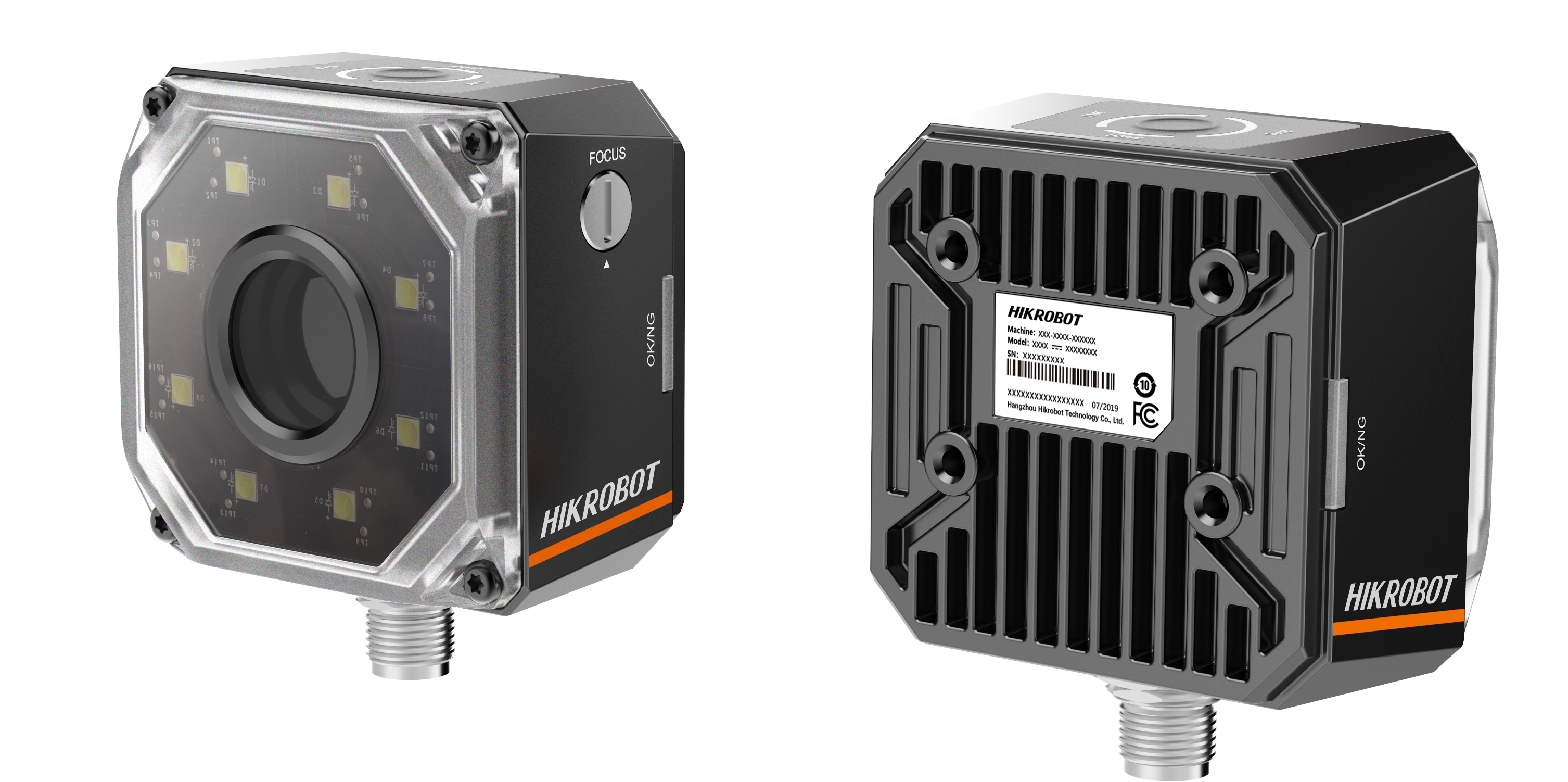

Adopts code reading algorithm to provide good decoding capability.
Provides good robustness to read codes with spots, defects and low contrast radio.
Supports continuous code reading, batch code reading for improving code reading efficiency.
Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
Adopts illumination system to provide direct lighting and diffused reflection lighting.
Supports IP65 and drop height of 1.8 m.

Resolution	1 MP
Power Supply	12 VDC, 24 VDC, USB: 5 VDC
Data Interface	DC terminal, Fast Ethernet, RS-232, USB2.0
Communication	Ethernet/IP, FTP, Fins, HTTP, MELSEC, ModBus, Profinet, Serial, SmartSDK, SLMP, TCP Client/Server, UDP, USB (HID/CDC)
1-Dimensional Code	Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, UPCE
2-Dimensional Code	Data Matrix, QR Code

Resolution	12 MP
Power Supply	48 VDC
Max Reading Speed	90 codes/sec
Communication	FTP, HTTP, Serial, SmartSDK, TCP Client/Server
1-Dimensional Code	Code 39, Code 93, Code 128, CodaBar, EAN, ITF 25
2-Dimensional Code	Data Matrix, QR Code

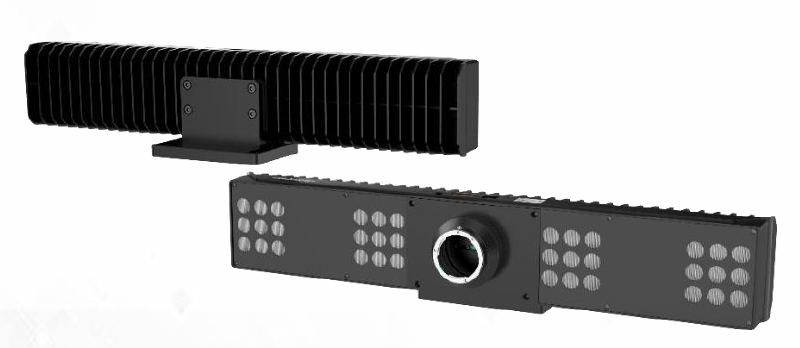

Built-in code reading algorithm to read different types of one-dimensional and two-dimensional codes with good robustness.
Supports image stitching and outputting combined images according to order.
Adopts image sensor to acquire and provide high-quality images.
Supports different trigger modes and image acquisition modes.
Adopts multiple IO interfaces for input/output signals.
Supports RS-232 serial communication protocol.
Integrated light source design with 48 LED lamps

Power Supply	48 VDC
Data Interface	Gigabit Ethernet
Communication	FTP, HTTP, Serial, SmartSDK, TCP Client/Server, UDP
1-Dimensional Code	Code 39, Code 93, Code 128, CodaBar
2-Dimensional Code	Data Matrix, QR Code
Type	Industrial

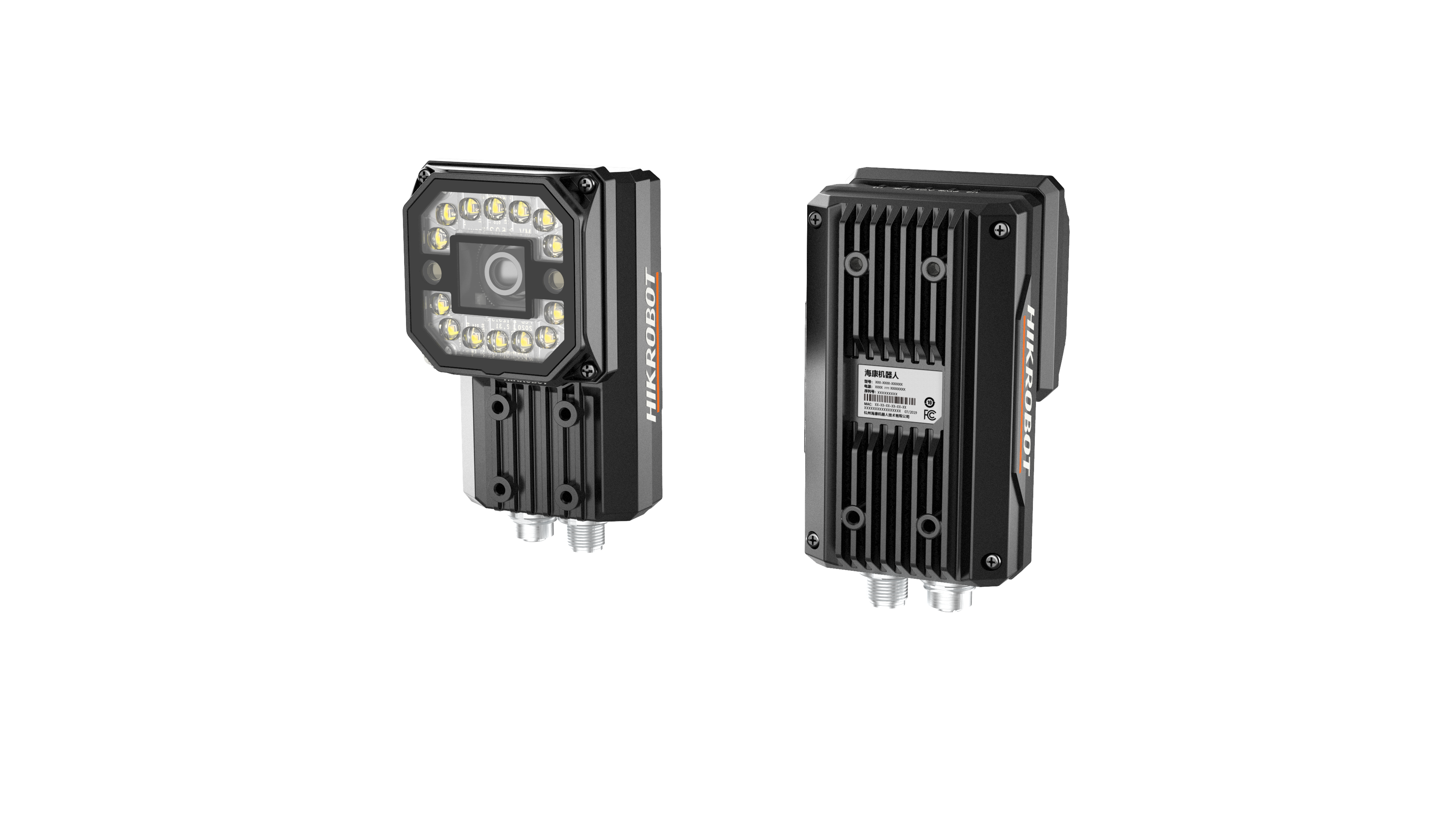

Compact design and small in size.
Adopts focus knob for adjusting focusing manually.
Adopts multiple IO interfaces and plug-in power interface.
Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, etc.

Resolution	1.3 MP
Power Supply	12 VDC, 24 VDC
Max Reading Speed	45 codes/sec
Data Interface	Fast Ethernet
Communication	Ethernet/IP, FTP, Fins, HTTP, MELSEC, ModBus, Profinet, Serial, SmartSDK, SLMP, TCP Client/Server, UDP
1-Dimensional Code	Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, UPCE

Resolution	1 MP
1-Dimensional Code	Code 11, Code 39, Code 93, Code 128, CodaBar, China Post, EAN 8, EAN 13, Industrial 25, ITF 25, Matrix 25, MSI, UPCA, UPCE
2-Dimensional Code	Aztec Code, Data Matrix, HANXIN, Micro QR Code, POST, QR Code

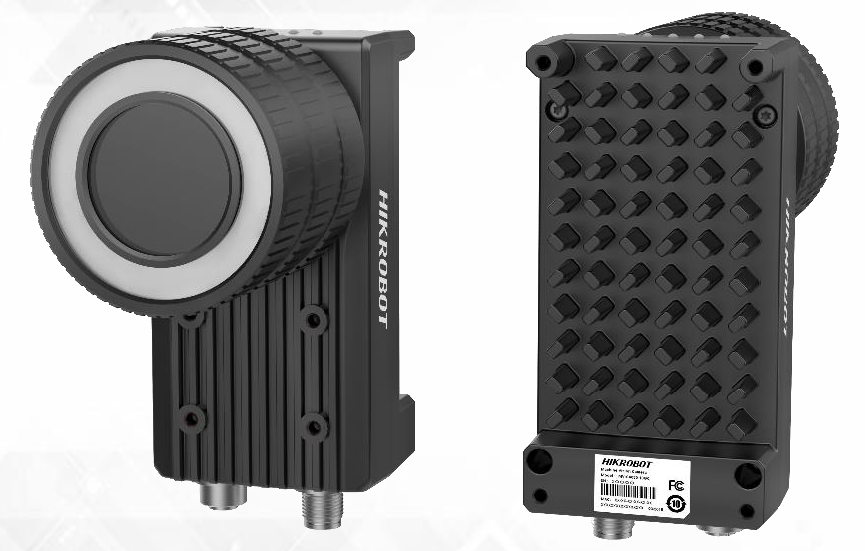

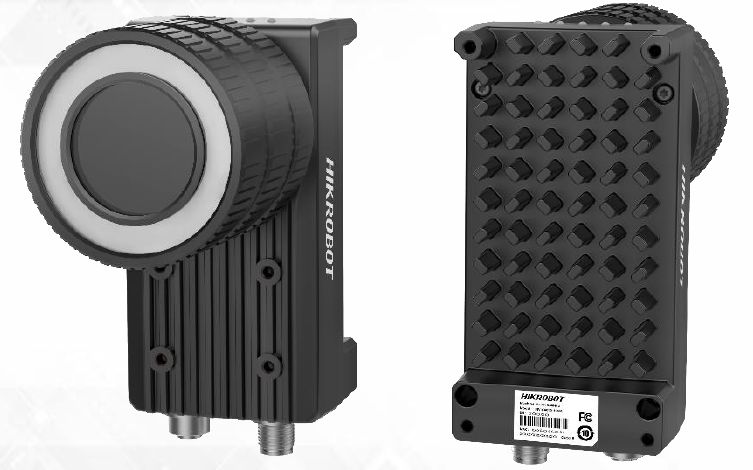

Adopts CMOS sensor to acquire image data and provide high-quality image.
Adopts built-in deep learning algorithm to read codes with good robustness.
Supports code quality evaluation to detect the printing quality of codes.
Supports multiple communication protocols, including Serial, FTP, Profinet,Fins, etc.
Supports RS-232 serial port and indicators displaying device status.

Resolution	20 MP
Power Supply	12 VDC, 24 VDC
Max Reading Speed	36 codes/sec
Data Interface	Gigabit Ethernet
Communication	Ethernet/IP, FTP, Fins, MELSEC, ModBus, Profinet, Serial, SmartSDK, SLMP, TCP Client/Server, UDP
1-Dimensional Code	Code 11, Code 39, Code 93, Code 128, CodaBar, China Post, EAN 8, EAN 13, ITF 14, ITF 25, Matrix 25, MSI, UPCA, UPCE

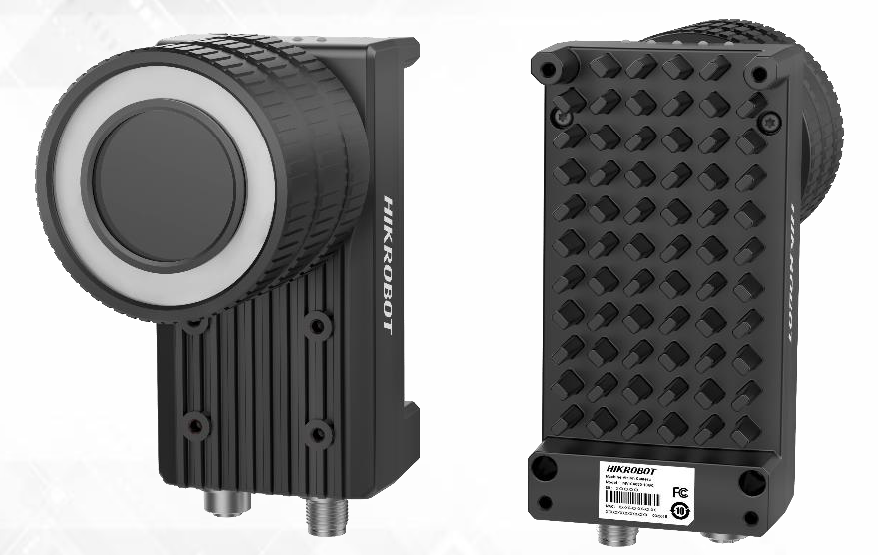

Adopts built-in deep learning algorithm to read codes with good robustness.
Adopts CMOS global shutter sensor to provide high quality images.
Supports chessboard ROI and reading 200 two dimensional codes at the same time.
Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
Ingress protection rating 67.

Resolution	20 MP
Power Supply	12 VDC, 24 VDC
Max Reading Speed	36 codes/sec
Data Interface	Gigabit Ethernet
Communication	Ethernet/IP, FTP, Fins, MELSEC, ModBus, Profinet, Serial, SmartSDK, SLMP, TCP Client/Server, UDP
1-Dimensional Code	Code 11, Code 39, Code 93, Code 128, CodaBar, China Post, EAN 8, EAN 13, ITF 14, ITF 25, Matrix 25, MSI, UPCA, UPCE

Adopts code reading algorithm to read different types of one-dimensional and two dimensional codes.
Provides good robustness to read codes with spots, defects and low contrast radio.
Supports continuous code reading, batch code reading for improving code reading efficiency.
Supports multiple communication protocols, including TCP, Serial, FTP, UDP, USB HID, etc.
Easy to replace components

Resolution	1.3 MP
Power Supply	12 VDC, 24 VDC, USB: 5 VDC
Data Interface	DC terminal, Fast Ethernet, RS-232, USB2.0
Communication	FTP, Serial, SmartSDK, TCP Client/Server, UDP, USB (HID/CDC)
1-Dimensional Code	Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, Matrix 25, UPCA, UPCE
2-Dimensional Code	Data Matrix, QR Code

Adopts code recognition technology to read different types of codes.
Adopts high robustness algorithm to read incomplete, dirty and low contrast codes.
Adopts 1.3 MP global sensor to provide high-quality images.
Adopts cross laser to aim targets.
Provides SDK for flexible applications.
Compact size is able to fit into space constrained application environments.

Power Supply	3.5 VDC, 4.5 VDC, 5.5 VDC
1-Dimensional Code	Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, UPCE
2-Dimensional Code	Data Matrix, QR Code
