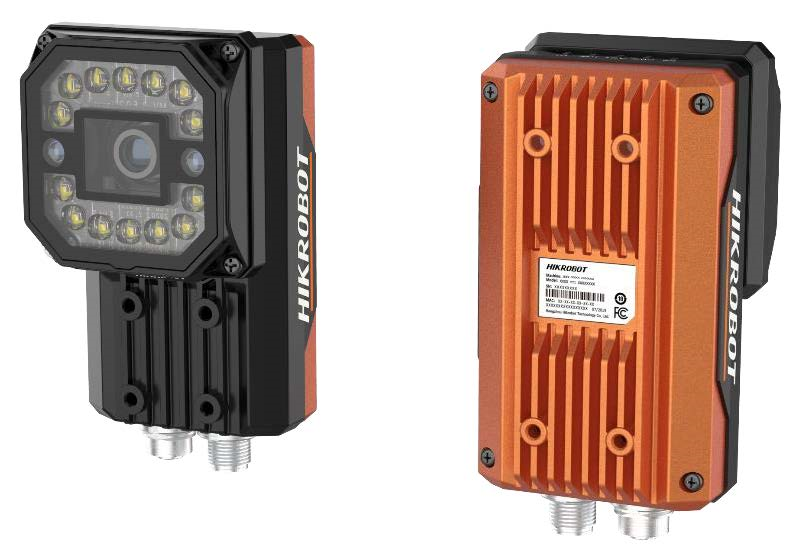

MV-SC7060PM, 6 MP - Smart Camera

MV-SC7060PM, 6 MP, Smart Camera

MV-SC7060PM smart camera is developed based on high-performance embedded platform. It adds vision algorithms like character recognition, object recognition, object sorting, etc.

Manufacturer : HIKROBOT

Key Features

Built-in deep learning algorithms to achieve character and object recognition, object sorting, etc.
Integrates general vision algorithms to achieve location, measurement, recognition, etc.
Supports mechanical autofocus function to achieve fast debugging and configuration.
Big memory and storage support image savings in loop with high performance.
Adopts multiple I/O interfaces for controlling.
Supports multiple communication protocols.
Supports indicators displaying device status.

Specifications

Resolution	6 MP
Existence Tools	Pattern Existence Spot Existence Edge Existence Circle Existence Line Existence
Counting Tools	Pattern Count Spot Count Edge Count
Measurement Tools	Brightness Analysis Contrast Measurement Greyscale Size Diameter Measurement Width Measurement Line Angle Line to Line Angle Point to Line Edge Width Measurement
Recognition Tools	OCR Code Recognition DL Object Detection DL Classification
Deep Learning / AI	Defect Detection
Mono/Color	Mono
Communication	Ethernet/IP Profinet Modbus FTP TCP Client/Server UDP Server RS-232
Robot Location	Match Location Match Calibration
Logic Tool	IF Module Condition Judge Logic Judge Combination Judge Calculator String Comparison
Single Pixel Accuracy	0.012 mm
Memory	8 GB
Storage	32 GB

Downloads

MV-SC7060PM	Datasheet
SC7000 Series Supporting Light Board	Datasheet
MV-SC7060PM stp drawing	Drawings
