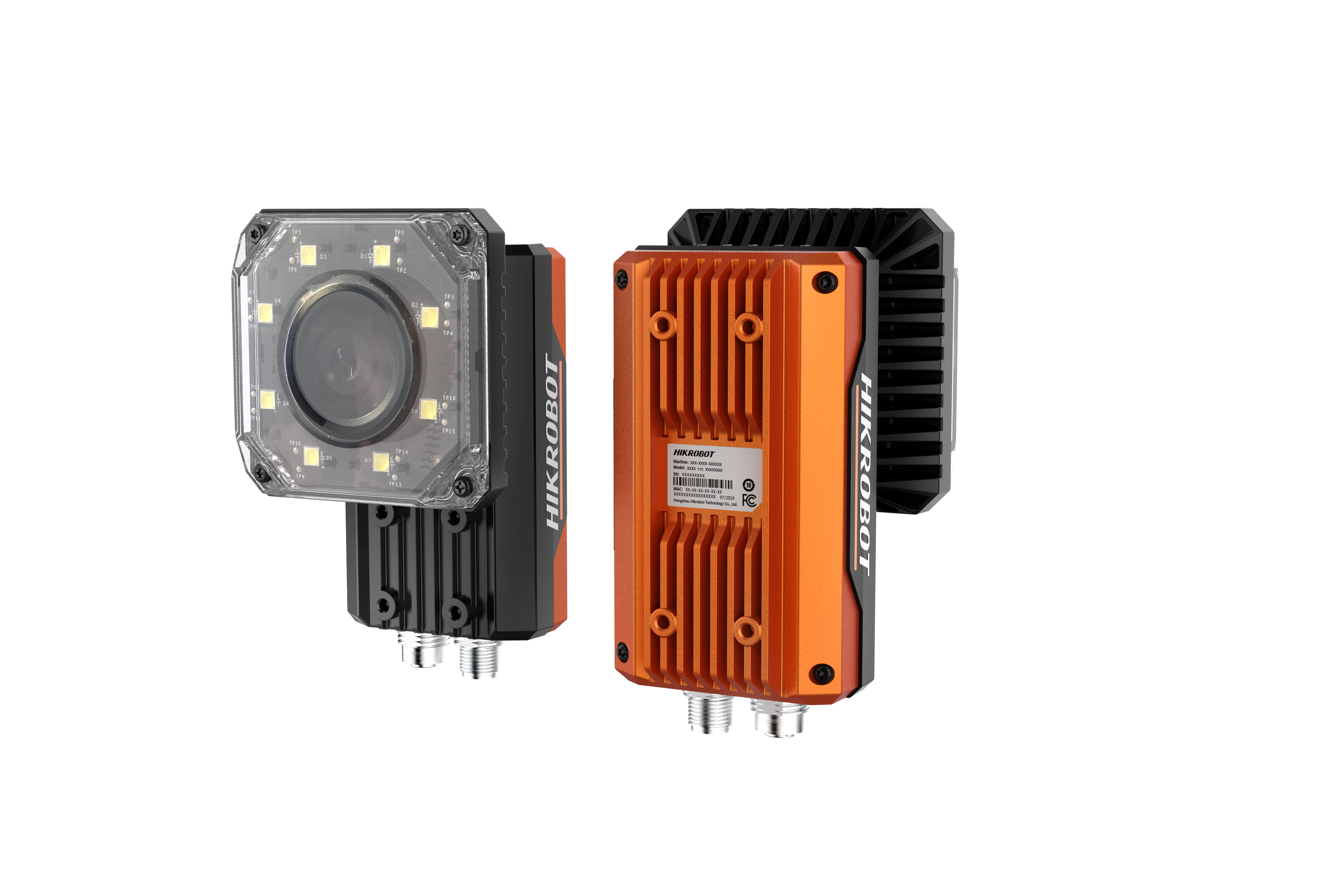

MV-SC7016C, 1.6 MP, Smart Camera
With built-in vision tools of deep learning, the MV-SC7016C smart camera can achieve character and object recognition, object sorting, and other functions.
Manufacturer : HIKROBOT
Key Features
- Built-in vision tools of deep learning to achieve character and object recognition, object sorting, etc.
- Supports semi-automatic focus to get clearer images.
- Adopts high speed and large capacity memory medium for saving images.
- Supports multiple communication protocols, including TCP, UDP, Serial, FTP, Modbus, etc.
- Supports indicators displaying device status.
Specifications
| Resolution | 1.6 MP |
| Deep Learning / AI | Feature Matching Fixture Blob Detection Character Location Classification Object Detection Character Recognition |
| Mono/Color | Color |
| Communication | Ethernet/IP Profinet Modbus FTP Digital I/O Serial Port TCP Client/Server UDP Server |
| Single Pixel Accuracy | 0.0115 mm |
| Memory | 4 GB |
| Storage | 32 GB |
| Power Supply | 12 VDC 24 VDC |
| Max Installation Distance | 800 mm (31.5") |
Downloads
| MV-SC7016C | Datasheet |
| MV-SC7016C, stp drawing | Drawings |
| SC7000 Series Supporting Light Board | Datasheet |
