MV-SC5200M-00C-NNN, 20 MP, Smart Camera

Products • Smart Cameras
MV-SC5200M-00C-NNN, 20 MP, Smart Camera

MV-SC5200M-00C-NNN, 20 MP, Smart Camera

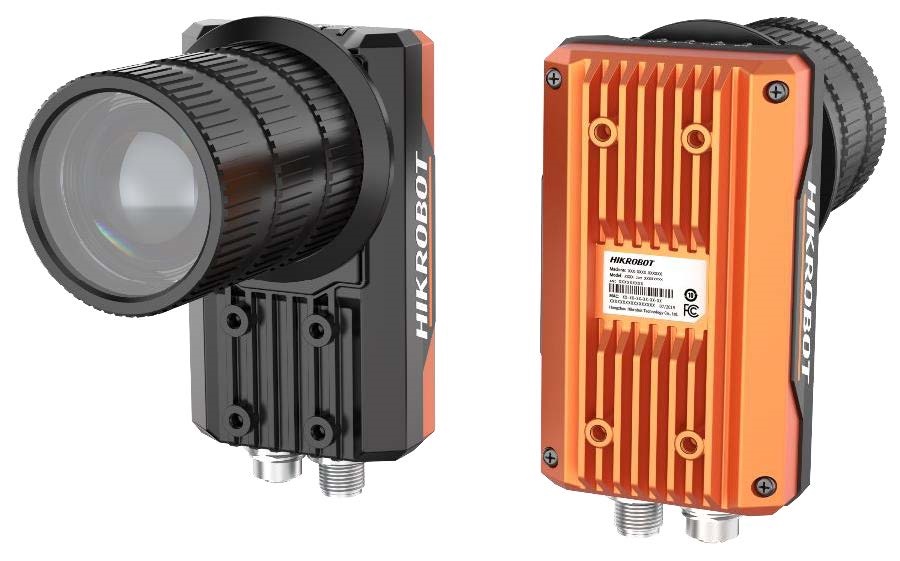

The MV-SC5200M-00C-NNN smart camera is developed based on high-performance embedded platform. It integrates vision algorithms, logic controls, and vision detection functions.

Manufacturer : HIKROBOT

Key Features

  • Integrates general vision algorithms to achieve location, measurement,
  • recognition, etc.
  • Big memory and storage support image savings in loop with high performance.
  • Adopts multiple I/O interfaces for controlling.
  • Supports multiple communication protocols.
  • Supports indicators displaying device status.

Specifications

Resolution20 MP
Existence ToolsPattern Existence
Spot Existence
Edge Existence
Circle Existence
Line Existence
Counting ToolsPattern Count
Spot Count
Edge Count
Measurement ToolsBrightness Analysis
Contrast Measurement
Greyscale Size
Diameter Measurement
Width Measurement
Line Angle
Line to Line Angle
Point to Line
Edge Width Measurement
Recognition ToolsOCR
Code Recognition
Mono/ColorMono
CommunicationEthernet/IP
Profinet
Modbus
FTP
TCP Client/Server
UDP Server
RS-232
Robot LocationMatch Location
Match Calibration
Logic ToolIF Module
Condition Judge
Logic Judge
Combination Judge
Character Comparison
Calculator
Memory8 GB
Storage32 GB
Power Supply24 VDC

Downloads

MV-SC5200M-00C-NNNDatasheet
MV-SC5200M-00C-NNN stp drawingDrawings
