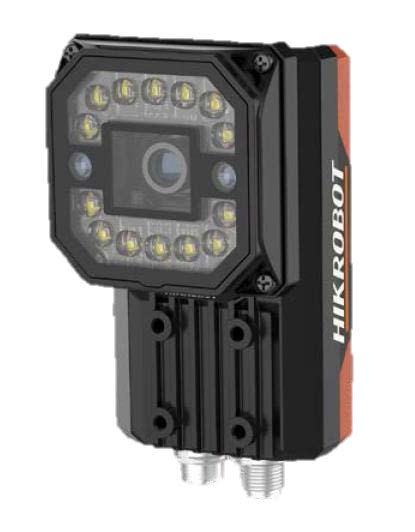

MV-SC5060M, 6 MP, Smart Camera
Integrates vision algorithms, logic controls, and vision detection functions.
Manufacturer : HIKROBOT
Key Features
- Integrates general vision algorithms to achieve location, measurement, recognition, etc.
- Supports mechanical autofocus function to achieve fast debugging and configuration.
- Big memory and storage support image savings in loop with high performance.
- Adopts multiple I/O interfaces for controlling.
- Supports multiple communication protocols.
- Supports indicators displaying device status.
Specifications
| Resolution | 6 MP |
| Existence Tools | Pattern Existence Spot Existence Edge Existence Circle Existence Line Existence |
| Counting Tools | Pattern Count Spot Count Edge Count |
| Measurement Tools | Brightness Analysis Contrast Measurement Greyscale Size Diameter Measurement Width Measurement Line Angle Line to Line Angle Point to Line Edge Width Measurement |
| Recognition Tools | OCR Code Recognition |
| Communication | Ethernet/IP Profinet Modbus FTP TCP Client/Server UDP Server RS-232 |
| Robot Location | Match Location Match Calibration |
| Logic Tool | IF Module Condition Judge Logic Judge Combination Judge Character Comparison Calculator |
| Single Pixel Accuracy | 0.012 mm |
| Memory | 8 GB |
| Storage | 32 GB |
| Power Supply | 24 VDC |
| Max Installation Distance | 3000 mm (118.1") |
Downloads
| SC5060M Datasheet | Datasheet |
| MV-SC5060M stp drawing | Drawings |
