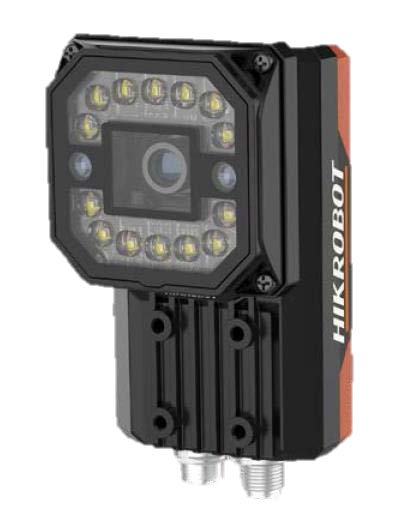

MV-SC5016C, 1.6 MP, Smart Camera
The MV-SC5016C smart camera was developed based on high-performance embedded platform, which integrates vision algorithms, logic controls, and vision detection functions.
Manufacturer : HIKROBOT
Key Features
- Integrates general vision algorithms to achieve location
- measurement, recognition, etc.
- Supports mechanical autofocus function to achieve fast debugging and configuration.
- Big memory and storage support image savings in loop with high performance.
- Adopts multiple I/O interfaces for controlling.
- Supports multiple communication protocols.
- Supports indicators displaying device status.
Specifications
| Resolution | 1.6 MP |
| Existence Tools | Pattern Existence Spot Existence Edge Existence Circle Existence Line Existence |
| Counting Tools | Pattern Count Spot Count Edge Count |
| Measurement Tools | Brightness Analysis Contrast Measurement Greyscale Size Diameter Measurement Width Measurement Line Angle Line to Line Angle Point to Line Color Size Edge Width Measurement |
| Recognition Tools | OCR Color Recognition Color Contrast Code Recognition |
| Mono/Color | Color |
| Communication | Ethernet/IP Profinet Modbus FTP TCP Client/Server UDP Server RS-232 |
| Single Pixel Accuracy | 0.017 mm |
| Memory | 8 GB |
| Storage | 32 GB |
| Power Supply | 24 VDC |
| Max Installation Distance | 2000 mm (78.7") |
Downloads
| MV-SC5016C 1.6 MP Smart Camera | Datasheet |
| MV-SC5016C stp drawing | Drawings |
