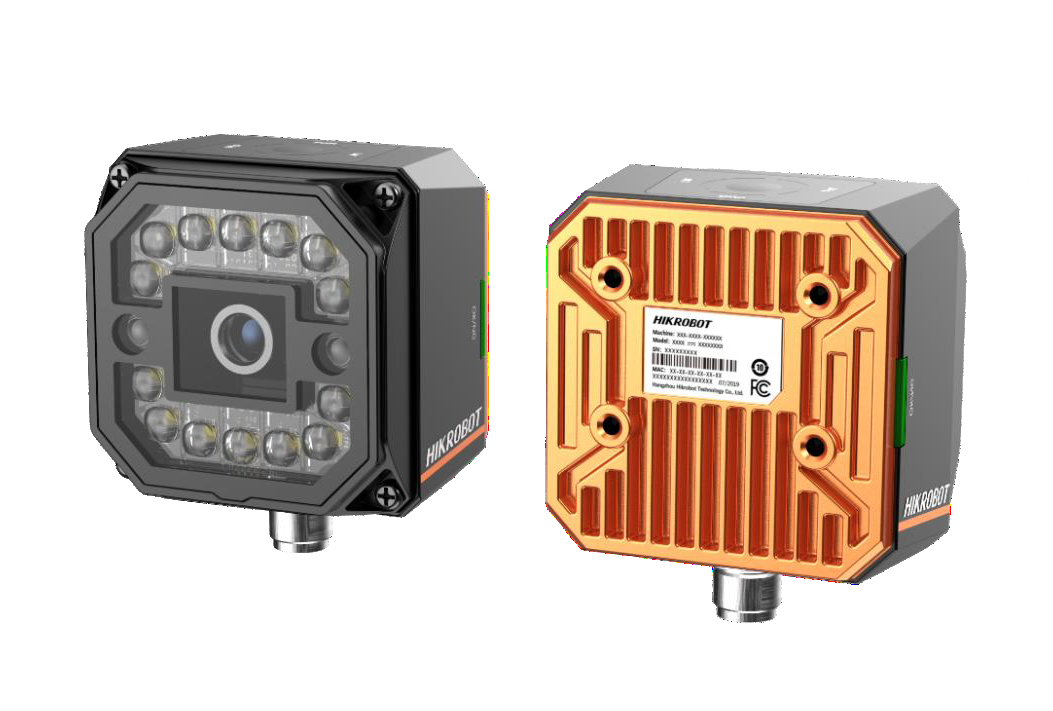

MV-SC3016M, 1.6 MP 1/2.9", Vision Sensor

MV-SC3016M, 1.6 MP 1/2.9", Vision Sensor

With built-in positioning and measurement algorithms, MVSC3016M vision sensor can detect object’s existence, position, dimension, etc. It can output results via RS-232 and Ethernet, and cooperate with other processes via IO.

Manufacturer : HIKROBOT

Key Features

  • Adopts embedded hardware platform for high-speed image processing.
  • Adopts built-in positioning and measurement algorithms to detect object’s existence, position, dimension, etc.
  • Multiple IO interfaces for input and output signals.
  • Multiple indicators for displaying device status.
  • Adopts light source to ensure uniform brightness in the illuminated area.
  • Supports multiple communication protocols, including Serial Port, TCP Client, TCP Server, Profinet, Modbus, etc.

Specifications

Resolution1.6 MP
Existence ToolsPattern Existence
Spot Existence
Edge Existence
Circle Existence
Line Existence
Counting ToolsPattern Count
Spot Count
Edge Count
Measurement ToolsBrightness Analysis
Contrast Measurement
Greyscale Size
Diameter Measurement
Width Measurement
Line Angle
Line to Line Angle
Point to Line
Recognition ToolsOCR
Barcode
Mono/ColorMono
CommunicationEthernet/IP
Profinet
Modbus
FTP
Digital I/O
Serial Port
TCP Client/Server
UDP Server
Single Pixel Accuracy0.0115 mm
Max Installation Distance800 mm (31.5")

Downloads

MV-SC3016MDatasheet
