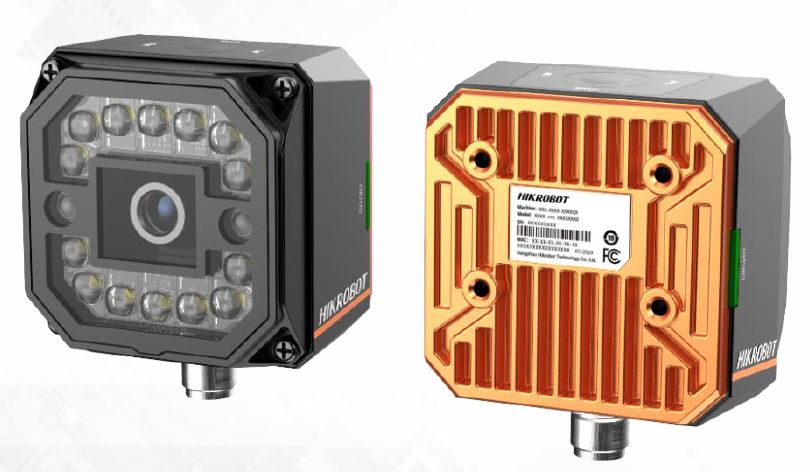

MV-SC3004M, 0.4 MP 1/2.9"

MV-SC3004M, 0.4 MP 1/2.9", Vision Sensor

With built-in positioning and measurement algorithms, MV-SC3004M vision sensor can detect object’s existence, quantity, location, etc.

Manufacturer : HIKROBOT

Adopts embedded hardware platform for high-speed image processing.
Adopts built-in positioning and measurement algorithms to detect object’s existence, quantity, location, etc.
Multiple IO interfaces for input and output signals.
Multiple indicators for displaying device status.
Adopts light source to ensure uniform brightness in the illuminated area.
Supports multiple communication protocols, including Serial Port, TCP, UDP, FTP, Profinet, Modbus, etc.

Resolution	0.4 MP
Existence Tools	Pattern Existence Spot Existence Edge Existence Circle Existence Line Existence
Counting Tools	Pattern Count Spot Count Edge Count
Measurement Tools	Contrast Measurement Greyscale Size Diameter Measurement Width Measurement Line Angle Line to Line Angle Point to Line Edge Width Measurement Brightness Average Value
Recognition Tools	OCR Code Recognition
Deep Learning / AI	Defect Detection
Mono/Color	Mono
Communication	Ethernet/IP Profinet Modbus FTP Serial Port TCP Client/Server UDP Server
Robot Location	Match Location Match Calibration
Logic Tool	IF Module Condition Judge Logic Judge Combination Judge Character Comparison Calculator
Single Pixel Accuracy	0.006 mm
Power Supply	24 VDC
Max Installation Distance	2000 mm (78.7")
