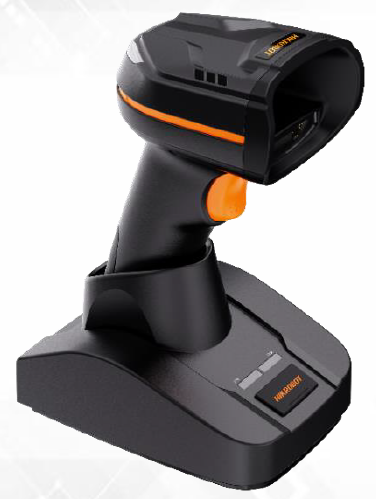

MV-IDH3013B, 1.3 MP Wireless Handheld, Smart Code Reader
MV-IDH3013B wireless handheld code reader adopts code reading algorithm and can read different types of one-dimensional and two-dimensional codes, and output results rapidly.
Manufacturer : HIKROBOT
Key Features
- Adopts code reading algorithm to read different types of one-dimensional and two dimensional codes.
- Provides good robustness to read codes with spots, defects and low contrast radio.
- Supports continuous code reading, batch code reading for improving code reading efficiency.
- Adopts Bluetooth 5.0 wireless technology to provide convenient and efficient operations.
- With smart bases, parameter configuration and device management via IDMVS client software are supported.
Specifications
| Resolution | 1.3 MP |
| Power Supply | 12 VDC 24 VDC Battery: 3.8 VDC USB: 5 VDC |
| Data Interface | DC terminal Fast Ethernet RS-232 USB2.0 |
| Communication | Bluetooth 5.0 2.4 GHz FTP Serial SmartSDK TCP Client/Server UDP USB (HID/CDC) |
| 1-Dimensional Code | Code 39 Code 93 Code 128 CodaBar EAN 8 EAN 13 ITF 14 ITF 25 UPCA UPCE |
| 2-Dimensional Code | Data Matrix QR Code |
| Type | Hand Held |
Downloads
| MV-IDH3013B, Datasheet | Datasheet |
| MV-IDH3013B, Drawing | Drawings |
