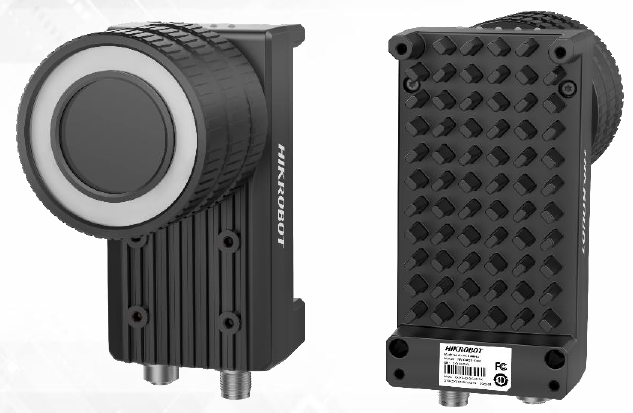

MV-ID6089C-00C-NNG, 8.9 MP, Smart Code Reader
With built-in code reading algorithm, MV-ID6089C-00C-NNG smart code reader can read different types of 1-dimensional code and 2-dimensional code with reading speed up to 90 codes/sec.
Manufacturer : HIKROBOT
Key Features
- Adopts built-in code reading algorithm and deep learning algorithm with good robustness to read different codes.
- Adopts CMOS sensor to acquire image data and provide high quality image.
- Supports various trigger modes and image acquisition modes.
- Adopts multiple IO interfaces for inputting and outputting signals.
- Supports RS-232 serial port and indicators displaying device status.
Specifications
| Resolution | 8.9 MP |
| Power Supply | 12 VDC 24 VDC |
| Max Reading Speed | 90 codes/sec |
| Data Interface | Gigabit Ethernet |
| Communication | FTP HTTP Serial SmartSDK TCP Client/Server |
| 1-Dimensional Code | Code 39 Code 93 Code 128 CodaBar ITF 25 UPC/EAN |
| 2-Dimensional Code | Data Matrix QR Code |
| Type | Industrial |
Downloads
| MV-ID6089C-00C-NNG Datasheet | Datasheet |
| MV-ID6089C-00C-NNG Drawing | Drawings |
