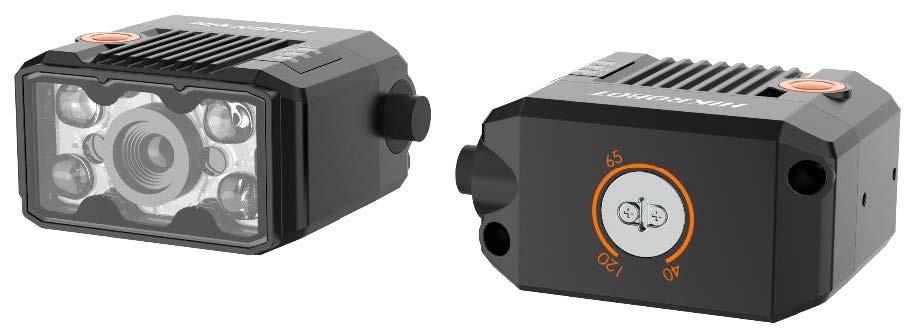

MV-ID2013M, 1.3 MP, Smart Code Reader
The MV-ID2013M smart code reader can read different types of 1-dimensional and 2-dimensional codes, and it's max. reading speed reaches 45 codes/sec.
Manufacturer : HIKROBOT
Key Features
- Built-in deep learning algorithm to read codes with good robustness.
- Compact design and small in size.
- Adopts aviation connector for single cable wiring.
- Adopts LED aiming light to help aim codes.
- Adopts focus knob for adjusting focusing manually.
- Adopts multiple IO interfaces and plug-in power interface.
- Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
Specifications
| Resolution | 1.3 MP |
| Power Supply | 12 VDC 24 VDC |
| Max Reading Speed | 45 codes/sec |
| Data Interface | Fast Ethernet |
| Communication | Ethernet/IP FTP Fins HTTP MELSEC ModBus Profinet Serial SmartSDK SLMP TCP Client/Server UDP |
| 1-Dimensional Code | Code 39 Code 93 Code 128 CodaBar EAN 8 EAN 13 ITF 14 ITF 25 UPCA UPCE |
| 2-Dimensional Code | Data Matrix QR Code |
| Type | Industrial |
| Mono/color | Mono |
Downloads
| MV-ID2013M dataheet | Datasheet |
| MV-ID2013M stp drawing | Drawings |
