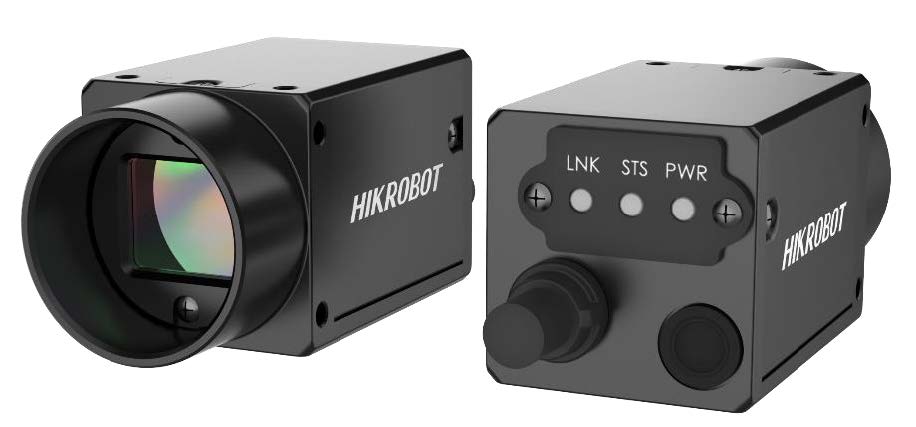

MV-ID2013M-00C-NNN, 1.3 MP, Smart Code Reader
The MV-ID2013M-00C-NNN smart code reader can read different types of 1 dimensional and 2-dimensional codes, and its max. reading speed reaches 45 codes/sec.
Manufacturer : HIKROBOT
Key Features
- Compact design and small in size.
- Adopts multiple IO interfaces and plug-in power interface.
- Supports multiple communication protocols, including TCP, Serial, FTP,
- Profinet, Ethernet/IP, MELSEC/SLMP, etc.
- Mounting holes on panels for flexible mounting from 4 sides.
Specifications
| Resolution | 1.3 MP |
| Power Supply | 12 VDC 24 VDC |
| Max Reading Speed | 45 codes/sec |
| Data Interface | Fast Ethernet |
| Communication | Ethernet/IP FTP Fins HTTP MELSEC ModBus Profinet Serial SmartSDK TCP Client/Server UDP |
| 1-Dimensional Code | Code 39 Code 93 Code 128 CodaBar EAN 8 EAN 13 ITF 14 ITF 25 UPCA UPCE |
| 2-Dimensional Code | Data Matrix QR Code |
| Type | Industrial |
Downloads
| MV-ID2013M-00C-NNN datasheet | Datasheet |
| MV-ID2013M-00C-NNN stp drawing | Drawings |
