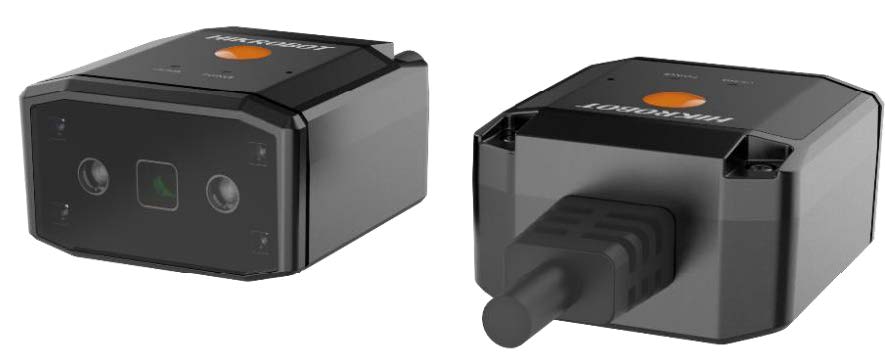

MV-ID2013EM, 1.3 MP, Smart Code Reader
MV-ID2013EM smart code reader can read different types of 1-dimensional and 2-dimensional codes, and its max. reading speed reaches 30 codes/sec.
Manufacturer : HIKROBOT
Key Features
- Built-in deep learning algorithm to read codes with good robustness.
- Compact design and small in size.
- Adopts multiple IO interfaces and plug-in power interface.
- Adopts LED aiming light to help aim codes.
- Adopts buzzer and indicator for indicating device status.
- Supports one-click parameter adjustment for convenient operation.
Specifications
| Resolution | 20 MP |
| Power Supply | 12 VDC 24 VDC |
| Max Reading Speed | 36 codes/sec |
| Data Interface | Gigabit Ethernet |
| Communication | Ethernet/IP Fins MELSEC ModBus Profinet SmartSDK SLMP TCP Client/Server UDP |
| 1-Dimensional Code | Code 11 Code 39 Code 93 Code 128 CodaBar China Post EAN 8 EAN 13 ITF 14 ITF 25 Matrix 25 MSI UPCA UPCE |
| 2-Dimensional Code | Data Matrix QR Code |
| Stack codes | PDF 417 |
Downloads
| MV-ID2013EM datasheet | Datasheet |
| MV-ID2013EM stp drawing | Drawings |
