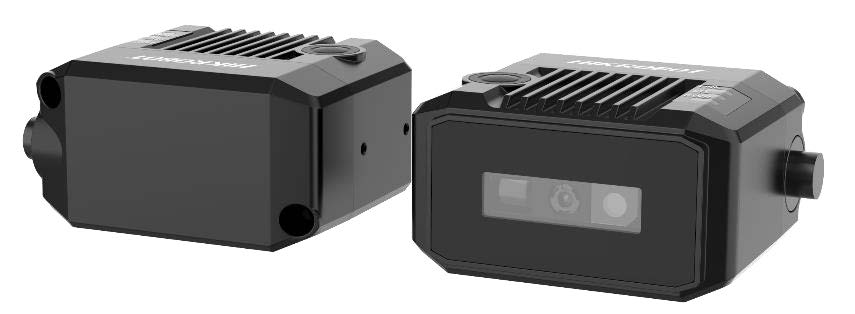

MV-ID2010M-05M-WLR, 1 MP, Smart Code Reader
The MV-ID2010M-05M-WLR smart code reader can read different types of 1-dimensional and 2-dimensional codes with reading speed up to 36 codes/sec.
Manufacturer : HIKROBOT
Key Features
- Built-in deep learning algorithm to read codes with good robustness.
- Compact design and small in size.
- Adopts aviation connector for single cable wiring.
- Adopts cross laser to help aim codes.
- Adopts multiple IO interfaces and plug-in power interface.
- Supports multiple communication protocols, including TCP, Serial, FTP, HTTP, etc.
Specifications
| Resolution | 1 MP |
| Power Supply | 12 VDC 24 VDC |
| Max Reading Speed | 36 codes/sec |
| Data Interface | Fast Ethernet |
| Communication | FTP HTTP Serial SmartSDK TCP Client/Server |
| 1-Dimensional Code | Code 39 Code 93 Code 128 CodaBar EAN ITF 25 |
| 2-Dimensional Code | Data Matrix QR Code |
| Type | Industrial |
| Mono/color | Mono |
Downloads
| MV-ID2010M-05M-WLR datasheet | Datasheet |
| MV-ID2010M stp drawing | Drawings |
