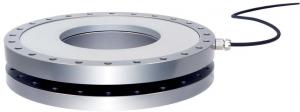

K-2698, Thru-Hole
Manufacturer : Lorenz Messtechnik GmbH
Key Features
- For Press-In Force Control
- Tension & Compression
- Accuracy: ±0.5% or ±1.0% F.S.
- Outer Diameter: 178.0mm - 320.0mm
- Inner Diameter: 85.0mm - 205.0mm
- Height: 35.0mm - 60.0mm
- Connection: 3m Integral Cable
- Aluminum (Cover Plate)
- Stainless Steel (Housing Body)
Specifications
| Type | Thru-Hole |
| Application | Tension & Compression |
| Full Scale | 22000 lbs 45000 lbs 66000 lbs 88000 lbs |
| Output | 1 mV/V |
| Precision | ±0.5 % FS ±1.0 % FS |
| Excitation | 2 V - 12 V DC |
| IP Rating | IP60 |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
Downloads
| K-2698 Thru-Hole | Datasheet |
