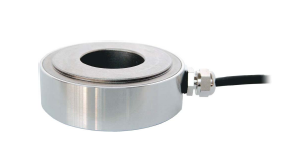

K-180, Thru-Hole Load Cell
This load cell is a variation of the compression load cell and features a through-hole design for use as a load washer to measure bolt loading, clamping forces, and overloads. Rugged stainless steel construction and reliable strain gauge...
Manufacturer : Lorenz Messtechnik GmbH
Key Features
- Force Washer Included
- Compression
- Accuracy: ±1.0% F.S.
- Outer Diameter: 18.0mm - 65.0mm
- Inner Diameter: 6.3mm - 30.8mm
- Height: 12.0mm - 27.0mm
- Connection: 3m Integral Cable
- Stainless Steel
Specifications
| Type | Thru-Hole |
| Application | Compression |
| Full Scale | 3400 lbs 6700 lbs 13500 lbs 18000 lbs 27000 lbs 36000 lbs 79000 lbs 112000 lbs |
| Output | 1 mV/V |
| Precision | ±1.0 % FS |
| Excitation | 2 V - 6 V DC |
| IP Rating | IP65 |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
