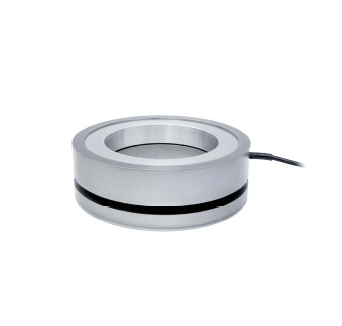

K-1250, Thru Hole
The miniature ring load cells of the K-1250 have been specially designed to show-up with small external dimensions. These sensors can be used for a wide range of industrial and laboratory applications due to their small size. The small diameter...
Manufacturer : Lorenz Messtechnik GmbH
Key Features
- For Press-In Force Control
- Tension & Compression
- Accuracy: ±0.5%
- Outer Diameter: 70.0mm - 112.0mm
- Inner Diameter: 33.0mm - 70.0mm
- Height: 25.0mm - 35.0mm
- Connection: 3m Integral Cable
- Stainless Steel
Specifications
| Type | Thru-Hole |
| Application | Tension & Compression |
| Full Scale | 450 lbs 1120 lbs 2200 lbs 4500 lbs 11200 lbs 22000 lbs |
| Output | 1 mV/V |
| Precision | ±0.5 % FS |
| Excitation | 2 V - 12 V DC |
| IP Rating | IP60 |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
Downloads
| K 1250 | Datasheet |
