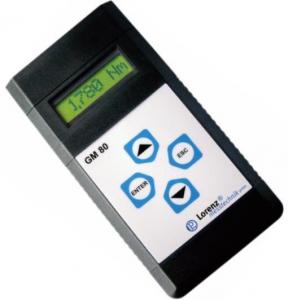

GM80, Portable Indicator
The GM80 measuring amplifier can process strain gauge signals of ±3,3 mV/V and active signals of ±10 V and 0/4-20 mA. The versatile configurable data logger can store a series of measurements with date and time up to 15288 measured values.
Manufacturer : Lorenz Messtechnik GmbH
Key Features
- Portable Indicator
- Strain Gauge Input
- Range of Mathematical Functions
- Protection Class: IP40
- RS-232 or USB Interface
- 10 Parameter Sets
- Mains, Battery or Accumulator Power Supply
- Accuracy: 0.1% F.S.
Specifications
| Input Type | DC Voltage DC Current Strain Gauge |
| No. of Inputs | 1 |
| Excitation | 5 V DC 12 V DC |
| Interface | RS-232 USB |
| IP Rating | IP40 |
Downloads
| GM80, Hand Held Vdc Strain to RS-232 | Datasheet |
