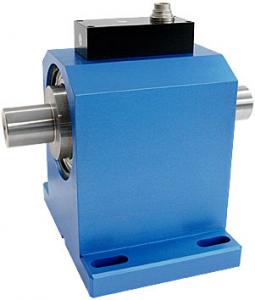

DR-2531 - Dual Range Analog Output Rotary Torque Sensor

DR-2531, Dual Range Analog Output Rotary Torque Sensor

The DR-2531 has a contactless and digital signal transmission from rotor to stator, which means no signal falsification and maintenance-free.

Manufacturer : Lorenz Messtechnik GmbH

Type	Rotary Dual Range
Dual Range	1:10
Full Scale	5 Nm 10 Nm 20 Nm 30 Nm 50 Nm 100 Nm 200 Nm 300 Nm 500 Nm 1000 Nm 2000 Nm 5000 Nm 10000 Nm 20000 Nm
Max Speed	3500 RPM 5500 RPM 7000 RPM 12000 RPM
Output	±5 V DC ±10 V DC Speed/Angle (TTL)
Precision	±0.10 % FS
Excitation	12 V - 28 V DC
Drive Side	Round Shaft
Test Side	Round Shaft
IP Rating	IP50
Min Temperature	0 °C
Max Temperature	60 °C
