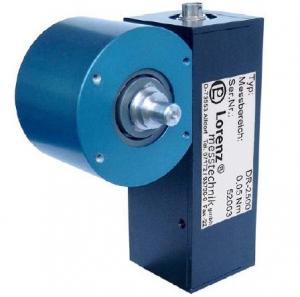

DR-2500, Analog Output High Speed Rotary Torque Sensor
The DR-2500 has a contactless and digital signal transmission from rotor to stator, which means no signal falsification and maintenance-free. This unit operates with analog output.
Manufacturer : Lorenz Messtechnik GmbH
Key Features
- Contactless Rotary Torque Sensor
- High Speed up to 30000 RPM
- Round Shafts
- Connection: 8-pin Series 711 Connector with Speed
- Sample Rate: 10 kSample
- Analog Output ±5V (±10V Option)
Specifications
| Type | Rotary |
| Full Scale | 0.005 Nm 0.01 Nm 0.02 Nm 0.05 Nm 0.1 Nm 0.2 Nm 0.5 Nm 1 Nm 2 Nm 5 Nm 10 Nm 20 Nm 50 Nm 100 Nm 150 Nm |
| Max Speed | 20000 RPM 30000 RPM |
| Output | ±5 V DC ±10 V DC Speed/Angle (TTL) |
| Precision | ±0.10 % FS |
| Excitation | 12 V - 28 V DC |
| Drive Side | Round Shaft |
| Test Side | Round Shaft |
| IP Rating | IP50 |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
