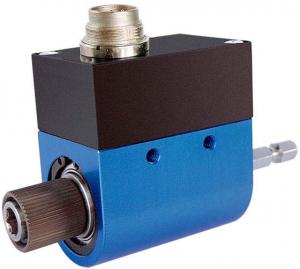

DR-2453, Digital Output Hex Shaft Rotary Torque Sensor

DR-2453, Digital Output Hex Shaft Rotary Torque Sensor

The DR-2453 torque sensor has a very short axial length and contactless data transmission, which means no signal falsification and maintenance-free. The unit can perform auto-identification of measuring range, serial number and date of calibration.

Manufacturer : Lorenz Messtechnik GmbH

Key Features

  • Contactless Rotary Torque Sensor
  • Hexagon Shaft & Socket
  • Very Short Axial Length
  • Connection: 12-pin Connector with Speed Option
  • Digital Output RS-485

Specifications

TypeRotary
Full Scale0.1 Nm
0.2 Nm
0.5 Nm
1 Nm
2 Nm
5 Nm
10 Nm
20 Nm
Max Speed3000 RPM
4000 RPM
OutputRS-485
Precision±0.10 % FS
Excitation12 V - 28 V DC
Drive Side1/4in Hexagon Socket
Test Side1/4in Hexagon Shaft
IP RatingIP50
Min Temperature0 °C
Max Temperature60 °C

Downloads

DR-2453 Digital Output Rotary Torque SensorDatasheet
