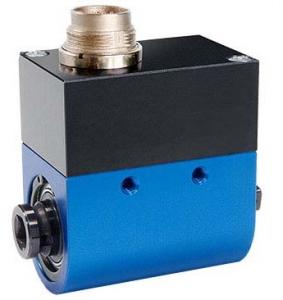

DR-2413, Digital Output Rotary Torque Sensor
The DR-2413 torque sensor has a very short axial length and contactless data transmission, which means no signal falsification and maintenance-free. The unit can perform auto-identification of measuring range, serial number and date of calibration.
Manufacturer : Lorenz Messtechnik GmbH
Key Features
- Contactless Rotary Torque Sensor
- Square Socket & Shaft
- Very Short Axial Length
- Connection: 12-pin Series 581 Connector with Speed Option
- Digital Output RS-485
Specifications
| Type | Rotary |
| Full Scale | 35 Nm 50 Nm 63 Nm 100 Nm 200 Nm 300 Nm 500 Nm 1000 Nm 2000 Nm 5000 Nm |
| Max Speed | 1000 RPM 1500 RPM 3000 RPM 4000 RPM |
| Output | RS-485 Speed/Angle (TTL) |
| Precision | ±0.10 % FS |
| Excitation | 12 V - 28 V DC |
| Drive Side | Square Socket |
| Test Side | Square Shaft |
| IP Rating | IP50 |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
Downloads
| DR-2413 Digital Output Rotary Torque Sensor | Datasheet |
