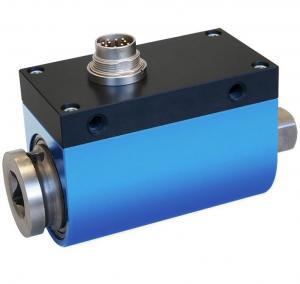

DR-12, Rotary Slipring Torque Sensor
The DR-12 slipring torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness allow for simple handling and simple assembly.
Manufacturer : Lorenz Messtechnik GmbH
Key Features
- Slipring Rotary Torque Sensor
- Square Socket & Shaft
- Very Short Axial Length
- Integrated Speed/Angle Measurement
- Connection: 12-pin Series 581 Connector with Speed
- Special Versions on Request
Specifications
| Type | Rotary |
| Full Scale | 1 Nm 2 Nm 5 Nm 12 Nm 25 Nm 63 Nm 100 Nm 160 Nm 200 Nm 500 Nm 1000 Nm 2000 Nm 5000 Nm |
| Max Speed | 500 RPM 1000 RPM 1500 RPM 2000 RPM |
| Output | 0.5 mV/V 2 mV/V Speed/Angle (TTL) |
| Precision | ±0.10 % FS |
| Excitation | 2 V - 12 V DC |
| Drive Side | Square Socket |
| Test Side | Square Shaft |
| IP Rating | IP50 |
| Min Temperature | -10 °C |
| Max Temperature | 60 °C |
Downloads
| DR-12 Slipring Torque Sensor | Datasheet |
