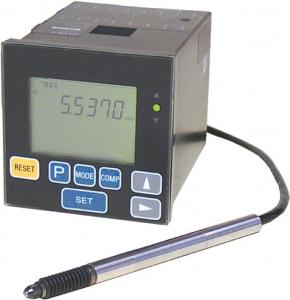

9140, Digital Display
The 9140 is a powerful display unit with compact design. It has high resolution in the order of 0.1 µm and a high response-frequency of 20 MHz. The integrated comparator function allows for direct evaluation in almost real-time.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Panel Mount Display
- Incremental Encoder Inputs
- Up to 2 Measurement Channels
- RS-232 Interface
- Range of Mathematical Functions
- 0.1 µm Resolution
Specifications
| Input Type | Encoder |
| No. of Inputs | 1 2 |
| Excitation | 5 V DC |
| Output Type | Relay |
| Interface | RS-232/485 |
| Supply Power | 11 - 27 V DC |
Downloads
| 9140 Digital Panel Mount Display | Datasheet |
| 9140-V00X0 CAD Drawing | Drawings |
| 9140-V00X1 CAD Drawing | Drawings |
