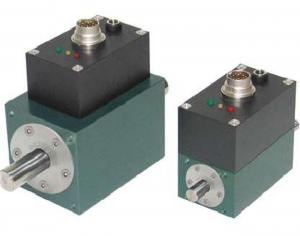

8661, Contactless Rotary Torque Sensor

8661, Contactless Rotary Torque Sensor

The 8661 precision torque sensor is the ideal choice for reliable measurement of static and dynamic clockwise and counter-clockwise torques. This sensor offers virtually maintenance-free and fail-safe operation.

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Low linearity error from less than 0.05 % f.s
  • Contactless
  • Smart status indicator
  • Output signal 0…+/- 10V
  • USB output and software DigiVision (option)
  • Integrated Angle Measurement (option)
  • Integrated speed Measurement (option)
  • Keyways (option)
  • Very good Value-for-money ratio

Specifications

TypeRotary
Dual Range
Dual Range1:4
1:5
1:10
Full Scale0.05 Nm
0.1 Nm
0.2 Nm
0.5 Nm
1 Nm
2 Nm
5 Nm
10 Nm
20 Nm
50 Nm
100 Nm
200 Nm
500 Nm
1000 Nm
Max Speed7000 RPM
15000 RPM
25000 RPM
Output±10 V DC
USB
Precision±0.25 % FS
±0.30 % FS
Excitation10 V - 30 V DC
Drive SideRound Shaft
Test SideRound Shaft
IP RatingIP40
Min Temperature0 °C
Max Temperature60 °C

Downloads

8661 Contactless RotaryDatasheet
Precision Torque Monitoring with 9307 and 8661Brochure
Metal Bellows Coupling (8690)Datasheet
8661-4050-v0x00 STPDrawings
8661-4050-v0x00 CAD DrawingDrawings
8661-4100-v0x00 CAD DrawingDrawings
8661-4200-v0x00 CAD DrawingDrawings
8661-4500-vxx00 CAD DrawingDrawings
8661-5001-vxx00 CAD DrawingDrawings
8661-5002-vxx00 CAD DrawingDrawings
8661-5005-vxx00 CAD DrawingDrawings
8661-5010-vxx00 CAD DrawingDrawings
8661-5020-vxx00 CAD DrawingDrawings
8661-5050-vxx00 CAD DrawingDrawings
8661-5100-vxx00 CAD DrawingDrawings
8661-5200-vxx00 CAD DrawingDrawings
8661-5500-vxx02 CAD DrawingDrawings
8661-6001-vxx02 CAD DrawingDrawings
