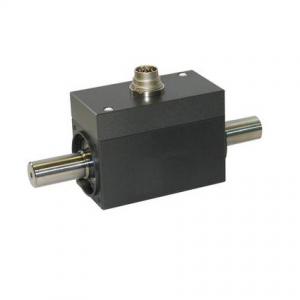

8651, Contactless Rotary Torque Sensor

8651, Contactless Rotary Torque Sensor

The slip-ring-free 8651 torque sensor for the measurement of torque, angular rotation or speed with integral measuring amplifier is suitable for use in the laboratory and in an industrial environment.

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Contactless Rotary Torque Sensor
  • Round Shafts
  • Integrated Speed/Angle Measurement (Option)
  • Connection: 6- or 12-pin Coupling Socket
  • Protection Class IP67 (Option)
  • Range up to 20000 Nm on Request

Specifications

TypeRotary
Full Scale500 Nm
1000 Nm
Max Speed35000 RPM
Output±10 V DC
Precision±0.20 % FS
Excitation15 V DC
Drive SideRound Shaft
Test SideRound Shaft
IP RatingIP40
Min Temperature0 °C
Max Temperature60 °C

Downloads

8651Datasheet
8651-5001 CAD drawingDrawings
8651-5002 CAD DrawingDrawings
8651-5005 CAD DrawingDrawings
8651-5010 CAD DrawingDrawings
8651-5020 CAD DrawingDrawings
8651-5050 CAD DrawingDrawings
8651-5100 CAD DrawingDrawings
8651--5200 CAD DrawingDrawings
8651-5500 CAD DrawingDrawings
8651-6001 CAD DrawingDrawings
