8552 - Burster Load Cell, Miniature Press

8552, Burster Load Cell, Miniature Press

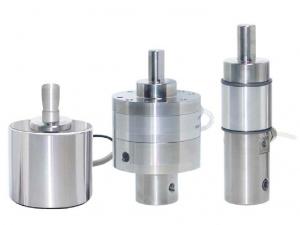

The load cell measures the compression forces between the circular contact surfaces of plunger and tool. The pin on its top side and hole on its lower face are simply provided for mechanical fixing and centering the components correctly. To...

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

Suitable for Standard Manual Presses (Stamp Holes 8 H7 resp.20 H7)
Compression
Accuracy: ±2.0% F.S.
Mechanical Overload Protection
Outer Diameter: 50.0mm
Height: 71.0mm
Connection: 1m Integral Cable
Stainless Steel
Anodized Aluminum (Range ≤ 1 kN)
Pin/Hole diameter from 8mm to 16mm

Specifications

Type	Rod Type
Application	Compression
Full Scale	112 lbs 220 lbs 560 lbs 1120 lbs 2200 lbs 5500 lbs
Output	0.35 mV/V 0.7 mV/V 0.9 mV/V 1 mV/V 1.5 mV/V
Precision	±2.0 % FS
Excitation	10 V DC
IP Rating	IP65
Min Temperature	0 °C
Max Temperature	70 °C
