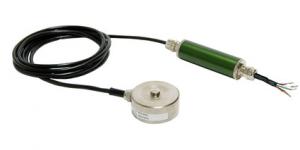

8532, Burster Load Cell, Miniature High Precision
The body of the sensor is a flat, cylindrical disk, into which a domed force application knob is integrated. It is important that the force is applied axially to the center of the sensor. The domed form minimizes the effect of a force that is...
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Includes IN-LINE Amplifier
- Compression
- Accuracy: < ±1.0% F.S.
- Outer Diameter: 50.0mm
- Height: 25.0mm
- Connection: Sensor - Amplifier: 2.0m Integral Cable
- Connection: Amplifier - Open End: 0.5m Integral Cable
- Stainless Steel
Specifications
| Type | Load Button |
| Application | Compression |
| Full Scale | 112 lbs 220 lbs 450 lbs 1120 lbs 2200 lbs 4500 lbs |
| Output | 10 V DC |
| Precision | ±1.0 % FS |
| Excitation | 15 V - 30 V DC |
| IP Rating | IP40 IP60 |
| Min Temperature | -20 °C |
| Max Temperature | 80 °C |
Downloads
| 8532 Low-Cost Compressive Load Cell | Datasheet |
| 8532-5500 | Drawings |
| 8532-5500-v400_9186 | Drawings |
| 8532-6001 | Drawings |
| 8532-6001-v400_9186 | Drawings |
| 8532-6002 | Drawings |
| 8532-6002-v400_9186 | Drawings |
| 8532-6005 | Drawings |
| 8532-6005-v400_9186 | Drawings |
| 8532-6010 | Drawings |
| 8532-6010-v400_9186 | Drawings |
| 8532-6020 | Drawings |
| 8532-6020-v400_9186 | Drawings |
