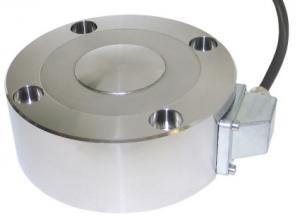

8527, Burster Load Cell, Miniature High Precision
The high precision load cell model for compression forces consists of a circular body, in which a load button is integrated. The load to be measured is transferred via its convex surface to the measuring element where it is converted into an...
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Static & Dynamic Measurements
- Compression
- Accuracy: < ±0.05% F.S.
- Outer Diameter: 79.0mm - 155.0mm
- Height: 22.0mm - 78.0mm
- Connection: 2m Cable
- Stainless Steel
- With Standardized Output Signal
Specifications
| Type | Load Button |
| Application | Compression |
| Full Scale | 112 lbs 220 lbs 450 lbs 1120 lbs 2200 lbs 4500 lbs 11200 lbs 22000 lbs |
| Output | 1.5 mV/V |
| Precision | ±0.05 % FS |
| Excitation | 10 V DC |
| IP Rating | IP65 |
| Min Temperature | -30 °C |
| Max Temperature | 80 °C |
Downloads
| 8527, High Precision Low compression, Load Cell | Datasheet |
| 8527-5500 CAD Drawing | Drawings |
| 8527-6001 CAD Drawing | Drawings |
| 8527-6002 CAD Drawing | Drawings |
| 8527-6005 CAD Drawing | Drawings |
| 8527-6010 CAD Drawing | Drawings |
| 8527-6020 CAD Drawing | Drawings |
| 8527-6050 CAD Drawing | Drawings |
| 8527-6100 CAD Drawing | Drawings |
