8526, Burster Load Cell, Miniature Compression

Products • Sensors • Load & Force
8526, Burster Load Cell, Miniature Compression

8526, Burster Load Cell, Miniature Compression

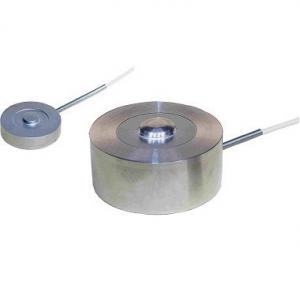

The model 8526 load cell is designed as a flat, circular disc. 4 strain gauges are applied at the measuring element of the sensor body. The measuring element inside the body carries a strain gauge full bridge which outputs a voltage directly...

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Static & Dynamic Measurements
  • Compression
  • Accuracy: Range ≤ 1 kN: ≤ ±0.25% F.S.
  • Accuracy: Range ≥ 2 kN: ≤ ±0.50% F.S.
  • Outer Diameter: 31.8mm - 76.2mm
  • Height: 9.9mm - 38.1mm
  • Connection: 2m Integral Cable
  • Stainless Steel
  • Threaded Holes on Bottom for Mounting

Specifications

TypeLoad Button
ApplicationCompression
Full Scale22 lbs
45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
45000 lbs
Output1 mV/V
Precision±0.25 % FS
±0.5 % FS
Excitation5 V DC
10 V DC
IP RatingIP64
Min Temperature-20 °C
Max Temperature100 °C
