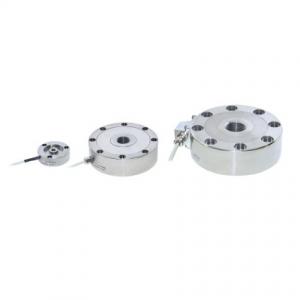

8524, Burster Load Cell, Miniature Pancake

Products • Sensors • Load & Force
8524, Burster Load Cell, Miniature Pancake

8524, Burster Load Cell, Miniature Pancake

The bending plate inside the load cell is equipped with strain gauges which, on the exertion of a force, supply a bridge- output voltage directly proportional to the measurement variable. The center axis of the tension/compression load cells...

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Tension & Compression
  • Accuracy: < ±0.25% F.S.
  • Accuracy: Range ≤ 5 N: ±0.1% F.S. (Option)
  • Outer Diameter: 54.5mm - 155.0mm
  • Height: 16.0mm - 50.0mm
  • Overload Protection up to 20 kN (Option)
  • Connection: 2m Integral Cable
  • Stainless Steel
  • Simple Mounting

Specifications

TypePancake
ApplicationTension & Compression
Full Scale112 lbs
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
45000 lbs
Output1.5 mV/V
Precision±0.1 % FS
±0.25 % FS
Excitation10 V DC
10 V AC
IP RatingIP52
IP67
Min Temperature-30 °C
Max Temperature80 °C
