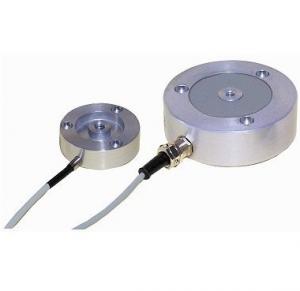

8523/8531, Burster Load Cell, Miniature Tension & Compression
The load to be measured is applied either using a load button or an application specific thread part to the load cell via a M8 thread, which is located in the axis of the tension and compression sensors. A strain gauge full bridge is in the...
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Tension & Compression
- Accuracy: Range ≤ 100 N: < ±0.50% F.S.
- Accuracy: Range 200 N to 500 N: < ±0.20% F.S.
- Accuracy: Range 1000 N: < ±0.25% F.S.
- Accuracy: Range 2000 N to 5000 N: < ±0.15% F.S.
- Outer Diameter: 54.5mm - 99.5mm
- Height: 16.0mm - 30.0mm
- Connection: 2m Integral Cable
- Anodized Aluminum
- Inexpensive
Specifications
| Type | Pancake |
| Application | Tension & Compression |
| Full Scale | 4.5 lbs 11.2 lbs 22 lbs 45 lbs 112 lbs 220 lbs 450 lbs 1120 lbs |
| Output | 1 mV/V 1.5 mV/V |
| Precision | ±0.15 % FS ±0.2 % FS ±0.25 % FS ±0.5 % FS |
| Excitation | 5 V DC 10 V DC 5 V AC 10 V AC |
| IP Rating | IP52 IP64 |
| Min Temperature | -30 °C |
| Max Temperature | 80 °C |
