85081/85082, Burster Load Cell, Miniature Tensile Force Sensor

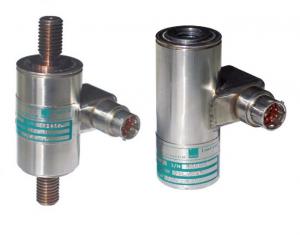

Both load cell types have cylindrical bodies, with a thread at each end for the application of the force. The good Ùgures for linearity, hysteresis and long-term stability are achieved as a result of the special design of the measuring element.
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- For Static and Dynamic Measurements
- Tension
- Compression (option)
- Accuracy: < ±0.2% F.S.
- Outer Diameter: Model 85081: 38.1mm - 114.3mm
- Outer Diameter: Model 85082: 38.1mm - 139.7mm
- Height: Model 85081: 114.0mm - 331.0mm
- Height: Model 85082: 108.0mm - 457.2mm
- Connection: Range ≤ 200 kN: 6-pin Bajonett Connector
- Connection: Range ≥ 500 kN: 6-pin Screw Connector
- Stainless Steel
Specifications
| Type | Rod Type |
| Application | Tension |
| Full Scale | 2200 lbs 4500 lbs 11200 lbs 22000 lbs 45000 lbs 112000 lbs 225000 lbs |
| Output | 2 mV/V |
| Precision | ±0.2 % FS |
| Excitation | 10 V DC |
| IP Rating | IP64 IP68 |
| Min Temperature | -55 °C |
| Max Temperature | 120 °C |
