85075, Burster Load Cell, Miniature High Precision

Products • Sensors • Load & Force

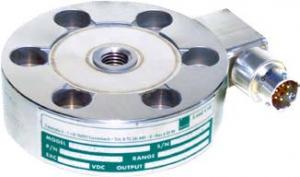

85075, Burster Load Cell, Miniature High Precision Tension & Compression

85075, Burster Load Cell, Miniature High Precision Tension & Compression

Model 85075 (tension/compression) is calibrated in the tensile direction. The characteristic figure for the compression direction can nominally vary by ± 0.25% from the figure for the tensile direction. The output signal is positive when the...

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Very Low Sensitivity to Lateral Forces
  • Tension & Compression
  • Accuracy: ±0.23% F.S.
  • Outer Diameter: 76.2mm - 228.6mm
  • Height: 25.4mm - 76.2mm
  • Connection: Range ≤ 10 kN: 6 pin Bajonett Plug-in Connector
  • Connection: Range ≥ 20 kN: 6 pin Screw Connector
  • Stainless Steel

Specifications

TypePancake
ApplicationTension & Compression
Full Scale5 lbs
11.2 lbs
22 lbs
45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
Output2 mV/V
Precision±0.21 % FS
±0.4 % FS
Excitation10 V DC
10 V AC
IP RatingIP64
Min Temperature-55 °C
Max Temperature120 °C

Downloads

85075 High Precision Load CellDatasheet
85075-0.2 CAD DrawingDrawings
85075-0.5 CAD DrawingDrawings
85075-1 CAD DrawingDrawings
85075-2 CAD DrawingDrawings
85075-5 CAD DrawingDrawings
85075-10 CAD DrawingDrawings
85075-20 CAD DrawingDrawings
85075-50 CAD DrawingDrawings
85075-100 CAD DrawingDrawings
85075-200 CAD DrawingDrawings
85075-500 CAD DrawingDrawings
