85073, Burster Load Cell, Miniature High Precision

Products • Sensors • Load & Force

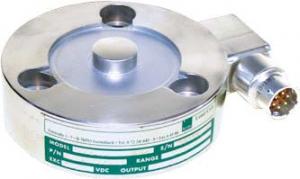

85073, Burster Load Cell, Miniature High Precision Compression

85073, Burster Load Cell, Miniature High Precision Compression

The 85073 is designed for the highest possible dynamic stress and service life. Between the central piece to which the force is applied (force introduction) and the outer ring (with fastening holes) there is a force-sensitive element to which...

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Very Low Sensitivity to Lateral Forces
  • Compression
  • Accuracy: ±0.23% F.S.
  • Outer Diameter: 76.2mm - 190.5mm
  • Height: 25.4mm - 63.5mm
  • Connection: Range ≤ 10 kN: 6 pin Bajonett Plug-in Connector
  • Connection: Range ≥ 20 kN: 6 pin Screw Connector
  • Stainless Steel

Specifications

TypePancake
ApplicationCompression
Full Scale5 lbs
11.2 lbs
22 lbs
45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
Output2 mV/V
Precision±0.23 % FS
Excitation10 V DC
10 V AC
IP RatingIP64
Min Temperature-55 °C
Max Temperature120 °C

Downloads

85073 High Precision Load CellDatasheet
85073-0.02 CAD DrawingDrawings
85073-0.05 CAD DrawingDrawings
85073-1 CAD DrawingDrawings
85073-2 CAD DrawingDrawings
85073-5 CAD DrawingDrawings
85073-10 CAD DrawingDrawings
85073-20 CAD DrawingDrawings
85073-50 CAD DrawingDrawings
85073-100 CAD DrawingDrawings
85073-200 CAD DrawingDrawings
85073-500 CAD DrawingDrawings
85073-7001 CAD DrawingDrawings
