85043, Burster Load Cell, Miniature High Precision

Products • Sensors • Load & Force
85043, Burster Load Cell, Miniature High Precision Compression

85043, Burster Load Cell, Miniature High Precision Compression

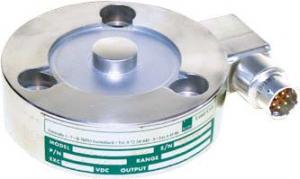

The 85043 sensors are sealed by membranes welded to the top and bottom. These membranes prevent the central part from being moved sideways when lateral forces or torques act on the device.

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Very Low Sensitivity to Lateral Forces
  • Compression
  • Accuracy: Range ≤ 100 N: ±0.40% F.S.
  • Accuracy: Range ≥ 200 N: ±0.21% F.S.
  • Outer Diameter: 63.5mm - 279.4mm
  • Height: 20.3mm - 109.7mm
  • Connection: Range ≤ 20 kN: 6 pin Bajonett Plug-in Connector
  • Connection: Range ≥ 50 kN: 6 pin Screw Connector
  • Stainless Steel
  • Coated Steel (2MN Range)

Specifications

TypePancake
ApplicationCompression
Full Scale5 lbs
11.2 lbs
22 lbs
45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
45000 lbs
112000 lbs
225000 lbs
337000 lbs
500000 lbs
Output3 mV/V
Precision±0.21 % FS
±0.4 % FS
Excitation10 V DC
10 V AC
IP RatingIP64
Min Temperature-55 °C
Max Temperature120 °C
