85041, Burster Load Cell, Miniature High Precision

Products • Sensors • Load & Force

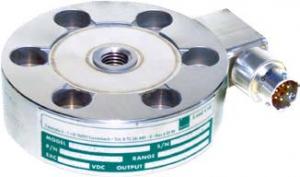

85041, Burster Load Cell, Miniature High Precision Tension & Compression

85041, Burster Load Cell, Miniature High Precision Tension & Compression

Model 85041 (tension/compression) is calibrated in the tensile direction. The characteristic figure for the compression direction can nominally vary by ± 0.25% from the figure for the tensile direction. The output signal is positive when the...

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Very Low Sensitivity to Lateral Forces
  • Tension & Compression
  • Accuracy: Range ≤ 100 N: ±0.40% F.S.
  • Accuracy: Range ≥ 200 N: ±0.21% F.S.
  • Outer Diameter: 63.5mm - 355.6mm
  • Height: 20.3mm - 108.0mm
  • Connection: Range ≤ 20 kN: 6 pin Bajonett Plug-in Connector
  • Connection: Range ≥ 50 kN: 6 pin Screw Connector
  • Stainless Steel
  • Coated Steel (2MN Range)

Specifications

TypePancake
ApplicationTension & Compression
Full Scale4.5 lbs
11.2 lbs
22 lbs
45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
45000 lbs
112000 lbs
225000 lbs
337000 lbs
450000 lbs
Output2 mV/V
3 mV/V
Precision±0.21 % FS
±0.4 % FS
Excitation10 V DC
10 V AC
IP RatingIP64
IP68
Min Temperature-55 °C
Max Temperature120 °C
