8451, Burster Load Cell, Miniature Press

8451, Burster Load Cell, Miniature Press

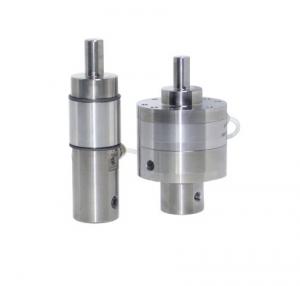

The load cell measures the compression forces between the circular contact surfaces of plunger and tool. The pin on its top side and hole on its lower face are simply provided for mechanical fixing and centering the components correctly. To...

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Suitable for Standard Manual Presses (Stamp Holes 8 H7 resp.20 H7)
  • Compression
  • Accuracy: ±2.0% F.S.
  • Mechanical Overload Protection (≤ 2 kN)
  • Outer Diameter: 27.5mm - 55.0mm
  • Height: 94.0mm - 115.0mm
  • Connection: 2m Integral Cable
  • Stainless Steel

Specifications

TypeRod Type
ApplicationCompression
Full Scale112 lbs
220 lbs
450 lbs
560 lbs
1120 lbs
2200 lbs
4500 lbs
5500 lbs
11200 lbs
22000 lbs
Output0.35 mV/V
0.7 mV/V
0.9 mV/V
1 mV/V
1.5 mV/V
Precision±2.0 % FS
Excitation10 V DC
IP RatingIP65
IP67
Min Temperature0 °C
Max Temperature70 °C
