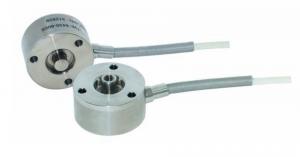

8435, Burster Load Cell, Miniature Tension Compression

8435, Burster Load Cell, Miniature Tension Compression

This model of load cell uses proven strain gauge technology to perform measurements. Strain gauges are applied to the sensitive element and connected to form a full bridge. The electrical resistance of this full bridge increases with the load...

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Tension & Compression
  • Accuracy: ±0.60% F.S.
  • Outer Diameter: 29.0mm
  • Height: 18.0mm
  • Connection: 2m Integral Cable
  • Stainless Steel
  • Simple Mounting

Specifications

TypeLoad Button
ApplicationTension & Compression
Full Scale45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
Output1 mV/V
Precision±0.60 % FS
Excitation5 V DC
IP RatingIP54
Min Temperature-30 °C
Max Temperature80 °C

Downloads

8435, Miniature Tension-CompressionDatasheet
8435-5200 CAD DrawingDrawings
8435-5200-v008 CAD DrawingDrawings
8435-5500 CAD DrawingDrawings
8435-5500-v008 CAD DrawingDrawings
8435-6001 CAD DrawingDrawings
8435-6001-v008 CAD DrawingDrawings
8435-6002 CAD DrawingDrawings
8435-6002-v008 CAD DrawingDrawings
8435-6005 CAD DrawingDrawings
8435-6005-v008 CAD DrawingDrawings
