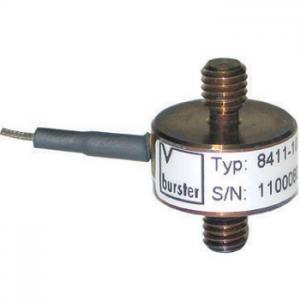

8411, Burster Load Cell, Subminiature

8411, Burster Load Cell, Subminiature

The forces to be measured are applied centrally to the load cell through the two threaded pins. One covering surface of the cylindrical sensor housing is implemented as a measuring element, with the strain gauge being applied to its inner side....

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • High Resonance Frequency
  • Tension & Compression
  • Accuracy: Better than ±0.5% of F.S.
  • Outer Diameter: 12.7mm - 19.1mm
  • Height: 16.6mm - 25.1mm
  • Stainless Steel
  • Connection: 1.5m Integral Cable

Specifications

TypeRod Type
ApplicationTension & Compression
Full Scale0.55 lbs
1.1 lbs
2.2 lbs
4.5 lbs
11.2 lbs
22 lbs
45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
Output2 mV/V
15 mV/V
Precision±0.5 % FS
Excitation5 V DC
IP RatingIP54
Min Temperature-55 °C
Max Temperature120 °C
