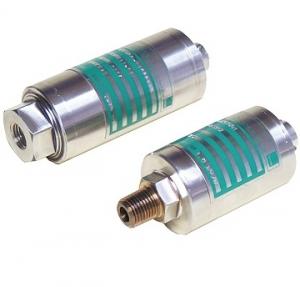

8264, High Precision Pressure Transducer

8264, High Precision Pressure Transducer

The 8264 pressure transducers are well-suited for making extremely accurate pressure measurements. Their ruggedness, reliability and excellent long-term stability make them suitable for many applications including both research and production.

Manufacturer : Burster Praezisionsmesstechnik Gmbh

Key Features

  • Dynamic & Static Measurements
  • Suitable for Liquids & Gases
  • 17-4 PH Stainless Steel
  • 1/4-18 NPT Thread
  • Resonance Frequency 1.3 kHz - 110 kHz (7.3 psi - 29000 psi)
  • Over Pressure 2 Times Rated Pressure (725 psi)
  • Over Pressure 1.5 Times Rated Pressure (> 725 psi)
  • Internal Amplifier (Option)

Specifications

TypeIndustrial
Operational ModeAbsolute
Sealed Gauge
Full Scale7.3 psi
15 psi
29 psi
73 psi
145 psi
290 psi
725 psi
1450 psi
2900 psi
7250 psi
14500 psi
29000 psi
Output3 mV/V
5 V DC
4 - 20 mA
Precision±0.10 % FS
Excitation10 V DC
10 V AC
TechnologyStrain Gauge
Material17-4 PH Stainless Steel
Thread1/4-18 NPT
Min Temperature-70 °C
Max Temperature160 °C

Downloads

8264 High Precision Pressure TransducerDatasheet
8264-4500 CAD DrawingsDrawings
8264-5001 CAD DrawingDrawings
8264-5002 CAD DrawingDrawings
8264-5005 CAD DrawingDrawings
8264-5010 CAD DrawingDrawings
8264-5020 CAD DrawingDrawings
8264-5050 CAD DrawingDrawings
8264-5100 CAD DrawingDrawings
8264-5200 CAD DrawingDrawings
8264-5500 CAD DrawingDrawings
8264-6001 CAD DrawingDrawings
8264-6002 CAD DrawingDrawings
