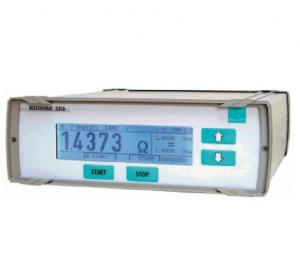

2316, RESISTOMAT® Milli-Ohmmeter
The device works according to the proven 4-wire measurement method which eliminates errors caused by test lead and contact resistances. Thermo voltages that might be in the measurement circle would be compensated automatically by this...
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Key Features
- Measuring ranges from 2 mΩ to 200 kΩ
- Resolution up to 0.1 μΩ
- Accuracy 0.03 % Rdg.
- Autorange
- Temperature compensation for all materials
- Thermal e.m.f. compensation
- Input voltage protection up to 400 Vrms
- RS232 and PLC interface standard (USB and Ethernet option)
Specifications
| Range | 2 mΩ 20 mΩ 200 mΩ 2 Ω 20 Ω 200 Ω 2 kΩ 20 kΩ 200 kΩ |
| Error | ≤ 0.03 % |
| Interface | RS-232 USB Ethernet Digital I/O PLC |
| Supply | 110 V AC 230 V AC |
Downloads
| 2316 Milliohmmeter RESISTOMAT® | Datasheet |
| 2394 - Adapter | Brochure |
| 2392-V001- RTD Temperature Sensor | Brochure |
| 2316-V0000 CAD Drawing | Drawings |
