Signal Simulators

Products • Electrical Testing

Our precision simulators are accurate & dependable, with outputs for PT100's, Thermocouples, Voltage, Current, Strain Gage, Resistance and IEPE Sensors. Go with quality because when simulating sensors for system validation, you can't afford fake it.

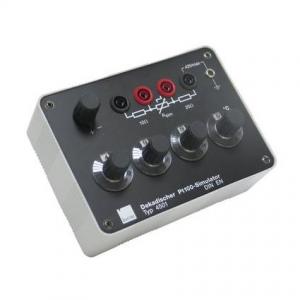

4501

4501
  • Simulation range -100 °C up to +500 °C
  • Resolution 0.1 °C
  • Calibration in accordance to DIN EN 60751
  • Simulation of line resistance 10 Ohms, 20 Ohms or 30 Ohms
  • Compact, easy to handle aluminium-housing
Output TypeRTD
4504

4504
  • 30 fixed points in a wide temperature range
  • Calibration to DIN EN 60751
  • Simulation of cable resistances up to 40 Ohms
  • Resistor material MANGANIN®, TK < 10 ppm/K
  • Compact easy to handle alu-housing
Output TypeRTD
4506

4506
  • 24 set temperature values
  • Calibration per DIN EN 60751
  • Resistor material: ZERANIN®
  • Temperature coefficient ≤ 2 ppm/K
  • Pt 100, Pt 500, Pt 1000
Output TypeRTD
4511/4512

4511/4512
  • Range: -200°C ... +850°C (11 fixed temp. values)
  • Calibration according to DIN EN 60751
  • Resistance material MANGANIN,TK < 10 ppm/K
  • Simulates connecting cable resistance upto 10 - 20Ω
  • Little, compact & sturdy plastic housing
  • Negligible ambient temperature influence
  • Long-term stability 0,02 % for years
  • 2-wire-connection technique
  • Maintenance-free
Output TypeRTD
4530

4530
  • Range: -200°C ...+850°C (Accuracy: 0.02°C)
  • Simulation of Pt100, Pt200,Pt500, Pt1000, Ni100 & Ni1000 Sensors
  • Temperature scales: ITS 90 & IPTS 68
  • Manual or remote control via RS232/IEEE488
  • A sturdy aluminium housing
Output TypeRTD
4423

4423
  • Wide Range of Inputs and Outputs all in one Digistant
  • Simulate and Measure
  • Vdc: 1mV up to 20V
  • Current: 1mA up to 24mA
  • Resistance: 5Ω up to 4000Ω & HART: 250Ω
  • Frequency/Pulse: 2 CPM up to 10KHz
  • RTD: Pt100 l 1000, Ni
  • TC: J, K, T, E, R, S, B, C
  • Amplifier Interfaces for Strain Gage, Potentiomatric based Sensors
Input TypeDC Voltage, DC Current, Thermocouple, RTD
Output TypeDC Voltage, DC Current, Thermocouple, RTD
InterfaceUSB
SupplyBattery, 230 V AC
9405

9405
  • Simulator for pressure, load, torque sensors
  • Strain gauge based design
  • Several ranges selectable
  • Easy operation
  • Sturdy and economical
Output TypeStrain Gauge
4503

4503
  • Calibration in accordance to DIN EN 60751
  • Sturdy aluminium housing
  • 30 fixed points in a wide temperature range
  • Simulation of resistances up to 40 Ohms
  • Resistor material MANGANIN, TK < 10 ppm/K
  • Simulation range from - 200 C up to 850 C
Output TypeRTD
1144/1146

1144/1146
  • More than 60 fixed temperature values from - 200 C... + 850 C are in stock
  • Calibration in acc. with DIN EN 60751
  • +/- 0.02% tolerance for the models 1144-Pt 100, 1144-Pt 500 and 1144-Pt 1000
  • +/- 0.05% tolerance from the resistance value in the range - 200 C...- 50 C the model 1146-Pt 100
Output TypeRTD
