Leak Testing Systems

Products

ForTest is an innovator in the field of Dry Air Leak Testing. They offer feature rich Leak Testers based on Absolute Pressure Decay, Differential Pressure Decay and Dual Pressure Decay methods. Their modern Leak Test Systems, offer Touch Screen Displays for ease of configuration, Digital I/O and Fieldbus communication, such as Modbus and Ethernet IP.

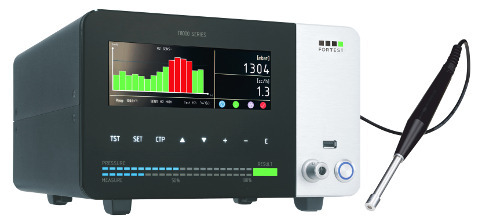

T8999

T8999
  • Aluminium Probe, with a 30° arm
  • Warning led and buzzer
  • Non-explosive, 5% hydrogen mix
  • USB slave, RS232, RS485, Can bus and TTY
OperationMass Flow
# of Channels1
Resolution1 Pa (0.00015 psi)
Data StorageUSB
InterfaceRS-485, RS-232
Accuracy0.5%
T8060

T8060
  • Electronically Controlled Pressure Regulation
  • Multiple Programs for different parts, with the possibility of different pressures
  • Multiple Languages, English, French, Spanish, Italian, …
  • BarCode Reader inputs and Printer output
  • Sequence – Pre-Fill to Balance Pressure, Reduced to Balanced Test Pressure, Stabilize, Measure Differential Pressure Decay
  • Data Collection by Serial Number, using a PC or PLC ( optional Field buses, Ethernet IP, ProfiNet, EtherCAT Modbus)
OperationPressure Decay
# of Channels1
Resolution0.1 Pa (0.000015 psi)
Display6.2 in Colour Display
Data StorageUSB
InterfaceEthernet TCP/IP, EtherCAT, RS-485, RS-232, EthernetIP, Profinet
T8090

T8090
  • Electronically Controlled Pressure Regulation
  • Multiple Programs for different parts, with the possibility of different pressures
  • Multiple Languages, English, French, Spanish, Italian, …
  • BarCode Reader inputs and Printer output
  • Sequence – Pre-Fill Pressure, Reduced to Test Pressure, Stabilize, Measure Absolute Pressure Decay
  • Data Collection by Serial Number, using a PC or PLC ( optional Field buses, Ethernet IP, ProfiNet, EtherCAT Modbus)
  • Dimensions 270 x 160 x 300 mm
  • Weight 8 Kg
  • Electrical Supply 24VDC, 110 VAC, 230 VAC
  • Air tube size: 4x2.7, 6x4, 8x6, 10x8
OperationPressure Decay
# of Channels2
Resolution0.1 Pa (0.000015 psi)
Display6.5 in Color Display
Data StorageUSB
InterfaceEthernet TCP/IP, EtherCAT, RS-485, RS-232, EthernetIP, Profinet

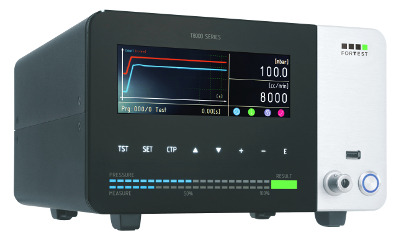

T8720

T8720
  • Solid state sensor
  • Direct display of the volumetric leak
  • Continuous injection of test air
  • High capacity pneumatic valves
  • Heat-proof pneumatic valves
  • Low maintenance
  • Measurement up to 1,000 cc/min
OperationMass Flow
Resolution1 Pa (0.00015 psi)
Data StorageUSB
InterfaceRS-485, RS-232
Accuracy0.5%

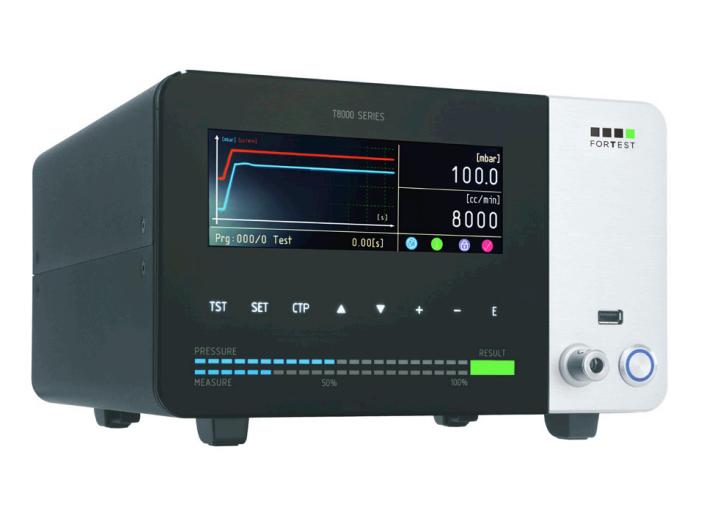

T8730

T8730
  • Fully automatic test flow adjustment management (8,000 Lt/min)
  • Multiple Programs for different parts
  • HMI touchscreen controller
  • Multiple Languages, English, French, Spanish, Italian, …
  • Sequence – Fill to Test Pressure, Stabilize, Measure Absolute Pressure Decay, calibrated leak rate
  • Data Collection by Serial Number, using a PC or PLC (optional Field buses, Ethernet IP, Modbus)
OperationMass Flow
# of Channels1
Resolution0.01 sccm/min
Data StorageUSB
InterfaceEthernet TCP/IP, EtherCAT, RS-485, RS-232, EthernetIP, Profinet
Accuracy0.5%

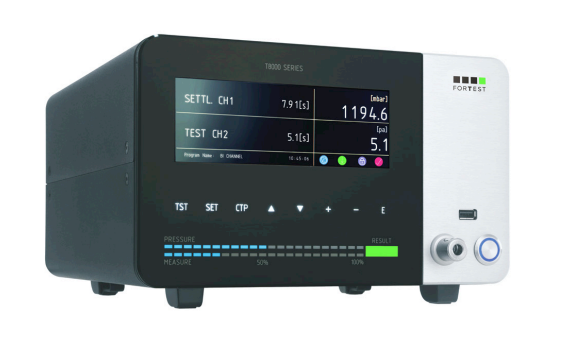

T8890

T8890
  • Two channel equipment
  • 3 types of pressure adjustment
  • Multiple Programs for different parts
  • HMI touchscreen controller
  • Multiple Languages, English, French, Spanish, Italian, …
  • Sequence – Fill to Test Pressure, Stabilize, Measure Absolute Pressure Decay, calibrated leak rate
  • Data Collection by Serial Number, using a PC or PLC ( optional Field buses, Ethernet IP, Modbus)
OperationPressure Decay
# of Channels2
Resolution0.1 Pa (0.000015 psi)
DisplayNumeric
Data StorageUSB
InterfaceEthernet TCP/IP, EtherCAT, RS-485, RS-232, EthernetIP, Profinet
T8970

T8970
  • Continuous measurement
  • Designed for the gas sector
  • Multiple Programs for different parts
  • HMI touchscreen controller
  • Multiple Languages, English, French, Spanish, Italian, …
  • Sequence – Fill to Test Pressure, Stabilize, Measure Absolute Pressure Decay, calibrated leak rate
  • Data Collection by Serial Number, using a PC or PLC (optional Field buses, Ethernet IP, Modbus)
OperationPressure Decay
# of Channels1
Resolution1 Pa (0.00015 psi)
Display6.2 in Colour Display
Data StorageUSB
InterfaceEthernet TCP/IP, EtherCAT, RS-485, RS-232, Profinet
T8980

T8980
  • Extremely low leak detection
  • 2 Independent measurement sections
  • Test pressure up to 100bars
  • Colour display
  • Password protection
  • I/O Signals (Start, Stop, Filling, Test, Good, Reject, 4BCD)
  • Mechanical Start/Stop button
  • Unit measurement available mbar, bar, psi, mmHg, mmH2O, Pa, HPa, cc/min, cc/h, pressure/s.
OperationPressure Decay
# of Channels1
Resolution1 Pa (0.00015 psi)
Display6.2 in Colour Display
Data StorageUSB
InterfaceRS-485, RS-232

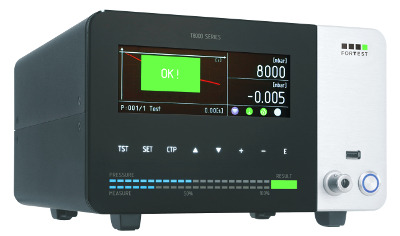

T8990

T8990
  • Electronically Controlled Pressure Regulation
  • Multiple Programs for different parts, with the possibility of different pressures
  • Faster parameter programming
  • Multiple Languages, English, French, Spanish, Italian, …
  • Barcode Reader inputs and Printer output
  • Sequence – Pre-Fill Pressure, Reduced to Test Pressure, Stabilize, Measure Absolute Pressure Decay
  • Data Collection by Serial Number, using a PC or PLC ( optional Field buses, Ethernet IP, ProfiNet, EtherCAT Modbus )
OperationPressure Decay
# of Channels1
Resolution0.1 Pa (0.000015 psi)
Display6.2 in Colour Display
Data StorageUSB
InterfaceEthernet TCP/IP, EtherCAT, RS-485, RS-232, EthernetIP, Profinet
T8997

T8997
  • Two different testing methods
  • USB Type-B female connector for PC
  • 6 languages (English, Italian, French, German, Spanish, Portuguese)
  • Mechanical Start/Stop button
  • Firmware update via USB stick
  • Password protection
  • 24V I/O (Start,Stop,Test,Good,Reject,4BCD)
  • available measurement units: mbar, bar, psi, mmHg, mmH20, Pa, HPa, cc/min, cc/h, pressure/s , l/h , l/min
  • Staubli© front connector for calibrated leakage
OperationPressure Decay, Mass Flow
# of Channels1
Resolution1 Pa (0.00015 psi)
Display6.2 in Colour Display
Data StorageUSB
InterfaceEthernet TCP/IP, EtherCAT, RS-485, RS-232, Profinet
