- Physicom Corp.
- Measurement & Control Solutions
We offer precision calibrators for validation of Ohmmeters, Thermocouples, Strain Gages, Pt100's, Current and Voltage Inputs. When versatility, accuracy and portability are top priority, Physicom Corp. sets the standard for transfer standers.

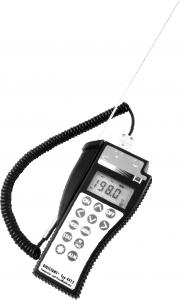

4415
- Calibration and measurement of 7 thermocouple types
- Internal and external reference junction
- 2 progammable alarm functions and acoustic alarm
- Storage of 50 measured values
- Averaging of min./max values
- Analog output
- Hold function
| Output Type | Thermocouple |
| Supply | Battery |

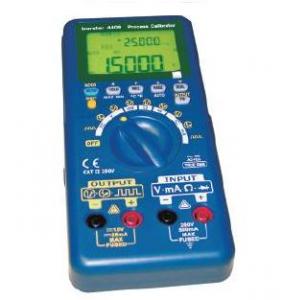

4409
- Constant voltage/current source
- Square wave generator
- Memory generation output
- Generate and measure simultaneously
- Multi-display multimeter
- Auto Scan/Ramp
| Output Type | DC Voltage, DC Current |
| Supply | Battery |

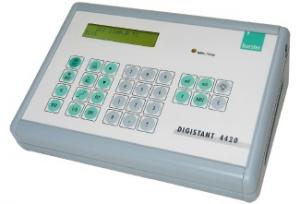

4420
- Input: Temperature Sensors
- Features: Measurement Range 0-20mA / 0-10VDC
- Battery Operated / 115V i/p
- Auotomatic ramp function, 4490 measuring cable included
| Input Type | DC Voltage, DC Current, Resistance, Thermocouple, RTD |
| Output Type | DC Voltage, DC Current, Resistance, Thermocouple |
| Interface | RS-232 |
| Supply | Battery, 230 V AC |
4405
- Micro-processor controlled current voltage source
- Voltage range 10 μV to 11.000 V
- Current range 2 μA to 22.00 mA
- Easy to operate, portable and handy
- NC-battery with overload and low-discharge protection
| Output Type | DC Voltage, DC Current |
| Supply | Battery, 110 V AC, 230 V AC |

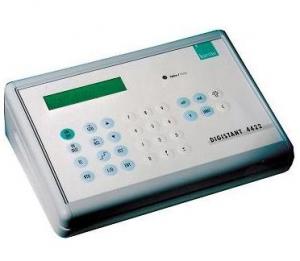

4422
- This model has been replaced with the 4423 Calibrator
- All functions can be fully controlled and configured via RS232
- Simultaneous transmission and measurement
- Automatic ramp function, data logger
- Simple menu assistance via display
- Automatic ramp function, data logger
- ± 1 µV to ± 11,000 V, ± 200 nA to ± 22,000 mA
- Connection of external pressure measurement modules
| Input Type | DC Voltage, DC Current, Thermocouple, RTD |
| Output Type | DC Voltage, DC Current, Thermocouple, RTD |
| Interface | RS-232 |
| Supply | Battery, 110 V AC, 230 V AC |

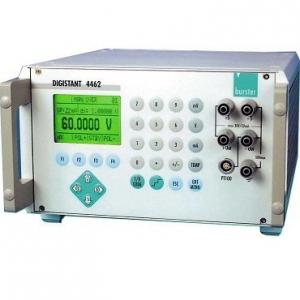

4462
- High precision current and voltage source ± 52 mA, ± 30 V
- Option: ± 22 mA, ± 60 V
- Precision simulation for all conventional thermocouple types
- Basic accuracy 0.005 % of reading
- RS232- and optional IEEE488 interface
| Output Type | DC Voltage, DC Current, Thermocouple |
| Interface | RS-232, USB |
| Supply | 110 V AC, 230 V AC |
1400
- Range 1406 10 mOhms to 100 kOhms
- Range 1407 100 mOhms to 1 MOhms
- Accuracy 1406/07 0.01%
- Temperature coefficient 1406/07 <= 2ppm/K
- Stability <0.01% resp.
| Output Type | Resistance |
