Torque Transducers

Products • Sensors

Turn the odd of success in your favor and align yourself with quality sensors for your torque measurements. Our Application Advisor quickly filters our diverse offering, using your specs to find the right torque sensor to meet your requirements.

DR-2153

DR-2153
  • Contactless Rotary Torque Sensor
  • Hexagon Shaft & Socket
  • Integrated Angle/Speed Measurement
  • Speeds up to 4000 RPM
  • Connection: 12-pin Series 581 Connector with Speed Option
  • Analog Output ±5V (±10V Option)
TypeRotary
Full Scale0.1 Nm, 0.2 Nm, 0.5 Nm, 1 Nm, 2 Nm, 5 Nm, 10 Nm, 15 Nm, 20 Nm
Max Speed3000 RPM, 4000 RPM
Output±5 V DC, ±10 V DC, Speed/Angle (TTL)
Precision±0.10 % FS
Excitation12 V - 28 V DC

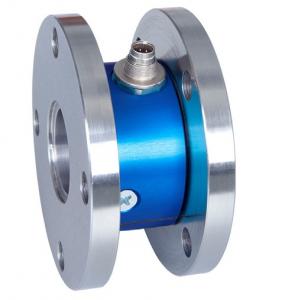

D-2553

D-2553
  • Through Hole
  • Very Short Axial Length
  • Connection: 7-pin Series 712 Connector
  • Flange Mounting
  • Special Version on Request
TypeReaction
Full Scale10 Nm, 20 Nm, 50 Nm, 100 Nm, 200 Nm
Output1 mV/V
Precision±0.10 % FS
Excitation2 V - 12 V DC
Drive Side80 mm Flange

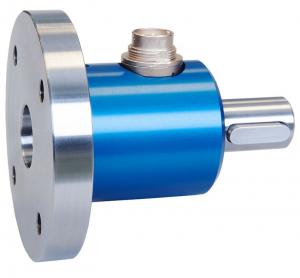

DFW-25

DFW-25
  • Keyway & Flange Ends
  • Very Short Axial Length
  • Connection: 7-pin Series 712 Connector
  • Special Version on Request
TypeReaction
Full Scale1 Nm, 2 Nm, 5 Nm, 10 Nm, 20 Nm, 50 Nm, 100 Nm, 200 Nm, 500 Nm, 1000 Nm, 2000 Nm
Output1 mV/V
Precision±0.20 % FS
Excitation2 V - 12 V DC
Drive SideFlange
DFW-35

DFW-35
  • Flange & Square Drive
  • Very Short Axial Length
  • Connection: 6-pin Series 723 Connector
  • Flange Mounting
  • Special Version on Request
TypeReaction
Full Scale2 Nm, 5 Nm, 12 Nm, 25 Nm, 63 Nm, 100 Nm, 160 Nm, 200 Nm, 500 Nm, 1000 Nm, 2000 Nm
Output1 mV/V
Precision±0.20 % FS
Excitation2 V - 12 V DC
Drive SideFlange
DH-15

DH-15
  • Flange & Round Ends
  • Very Short Axial Length
  • Connection: 6-pin Series 723 Connector
  • Flange Mounting
  • Special Version on Request
TypeReaction
Full Scale0.005 Nm, 0.01 Nm, 0.02 Nm, 0.05 Nm, 0.1 Nm, 0.2 Nm, 0.5 Nm, 1 Nm, 2 Nm, 5 Nm, 10 Nm, 20 Nm
Output0.3 mV/V, 0.5 mV/V, 1 mV/V
Precision±0.20 % FS
Excitation2 V - 12 V DC
Drive SideFlange with Spigot
DK-15

DK-15
  • Miniature
  • Keyway Ends
  • Very Short Axial Length
  • Connection: 3m Integral Cable
  • Special Version on Request
TypeReaction
Full Scale1 Nm, 2 Nm, 5 Nm, 10 Nm, 20 Nm
Output1 mV/V
Precision±0.20 % FS
Excitation2 V - 12 V DC
Drive SideRound Shaft with Keyway
DR-1986/DR-1987/DR-1988/DR-2124

DR-1986/DR-1987/DR-1988/DR-2124
  • Contactless Rotary Torque Sensor
  • Very Short Axial Length
  • Integrated Angle Measurement
  • Integrated Control Signal
  • Sample Rate: 10 kSample
  • Connection: 12-pin Series 581 Connector with Speed
  • Custom Mounting & Shafts Available
  • High Dynamic Response
TypeRotary
Full Scale1 Nm, 3 Nm, 4 Nm, 6 Nm, 12 Nm, 35 Nm, 60 Nm, 80 Nm, 90 Nm, 95 Nm, 150 Nm, 160 Nm, 200 Nm, 240 Nm, 250 Nm, 500 Nm
Max Speed2000 RPM
Output±5 V DC, ±10 V DC, Speed/Angle (TTL)
Precision±0.30 % FS
Excitation12 V - 28 V DC
DR-2114

DR-2114
  • Contactless Rotary Torque Sensor
  • Hexagon Sockets
  • Miniature
  • Connection: 3m Integral Cable with Speed Option
  • Analog Output ±5V (±10V Option)
TypeRotary
Full Scale0.1 Nm, 0.2 Nm, 0.5 Nm, 1 Nm, 2 Nm, 5 Nm, 10 Nm, 15 Nm, 20 Nm
Max Speed3000 RPM, 4000 RPM
Output±5 V DC, ±10 V DC, Speed/Angle (TTL)
Precision±0.10 % FS
Excitation12 V - 28 V DC
DR-2493

DR-2493
  • Contactless Rotary Torque Sensor
  • Square Shaft & Socket
  • Very Short Axial Length
  • Connection: 12-pin Series 581 Connector with Speed Option
  • Analog Output ±5V (±10V Option)
TypeRotary
Full Scale0.1 Nm, 0.2 Nm, 0.5 Nm, 1 Nm, 2 Nm, 5 Nm, 10 Nm, 15 Nm, 20 Nm, 35 Nm, 50 Nm, 63 Nm, 100 Nm, 160 Nm, 200 Nm, 300 Nm, 500 Nm, 1000 Nm, 2000 Nm, 3000 Nm, 5000 Nm
Max Speed1000 RPM, 1500 RPM, 2500 RPM, 3000 RPM, 4000 RPM
Output±5 V DC, ±10 V DC, Speed/Angle (TTL)
Precision±0.25 % FS
Excitation12 V - 28 V DC
DR-2481

DR-2481
  • Contactless Rotary Torque Sensor
  • Spline Data 24 Teeth 20/30 Pitch 30" pressure angle
  • Integrated Angle/Speed Measurement
  • Connection: 6-pin Series 723 Connector
TypeRotary
Full Scale260 Nm
Max Speed15000 RPM
Output±10 V DC
Precision±0.50 % FS
Excitation12 V - 28 V DC
