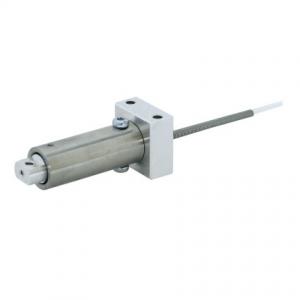

The sensor element consists of a double bending beam with applied strain gauges. Changes in the ohmic resistance of the strain gauge full bridge caused by applied forces are converted into electrical voltages. The precise value(characteristic...
Manufacturer : Burster Praezisionsmesstechnik Gmbh
Type | Weighing Beam |
Application | Tension & Compression |
Full Scale | 0.22 lbs 0.45 lbs 1.1 lbs 2.2 lbs 4.5 lbs |
Output | 1 mV/V |
Precision | ±0.25 % FS |
Excitation | 3 V DC 5 V DC |
IP Rating | IP20 |
Min Temperature | 15 °C |
Max Temperature | 70 °C |
8510 Bending Beam Load Cell | Datasheet |
8510-5001 CAD Drawing | Drawings |
8510-5001-v010 CAD Drawing | Drawings |
8510-5002 CAD Drawing | Drawings |
8510-5002-v010 CAD Drawing | Drawings |
8510-5005 CAD Drawing | Drawings |
8510-5005-v010 CAD Drawing | Drawings |
8510-5010 CAD Drawing | Drawings |
8510-5010-v010 CAD Drawing | Drawings |
8510-5020 CAD Drawing | Drawings |
8510-5020-v010 CAD Drawing | Drawings |
